Square Negative Chipbreaker F5 with ISO Style Hole, 0.142 / 0.148 in
Square Negative Chipbreaker F5 with ISO Style Hole, 0.142 / 0.148 in
SKU:TUR-c9cf08
Precision Square Negative Chipbreaker F5 for turning operations, 0.142 / 0.148 in thickness, ideal for finishing.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Chipbreaker F5 with ISO Style Hole, 0.142 / 0.148 in
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Chipbreaker F5 with ISO Style Hole, 0.142 / 0.148 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative Chipbreaker F5 with ISO Style Hole offers precision and durability for turning operations. With a thickness of 0.142 / 0.148 inches and an Inscribed Circle of 0.389 / 0.395 inches, this chipbreaker is designed for finishing operations. The 90-degree angle and precise hole dimensions of 0.164 / 0.170 inches ensure optimal performance. Grade availability is customizable based on requirements, meeting the highest industry standards.
Ready to Grow Without Cash Flow Constraints?

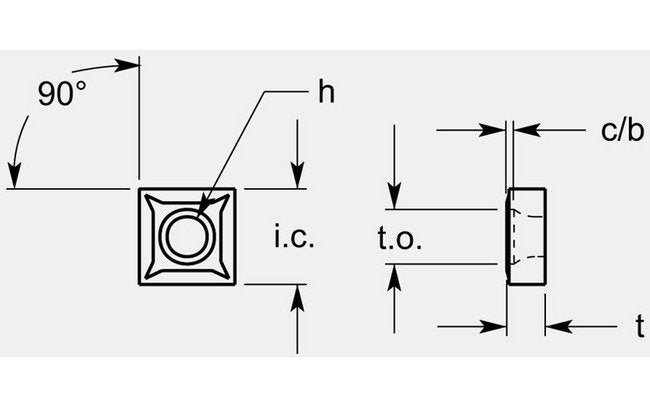

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.030 / 0.036 in
Dimensional Specification Hole
0.164 / 0.170 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.142 / 0.148 in
Dimensional Specification To
0.233 / 0.239 in
Grade Availability Grade Availability
Available on Request
