Square Negative F5 Chipbreaker - 0.173/0.179 in Thickness (ISO Style Hole)
Square Negative F5 Chipbreaker - 0.173/0.179 in Thickness (ISO Style Hole)
SKU:TUR-167641
Precision Square Negative F5 Chipbreaker, 0.173/0.179 in Thickness, 90° Angle, In Stock
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative F5 Chipbreaker - 0.173/0.179 in Thickness (ISO Style Hole)
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative F5 Chipbreaker - 0.173/0.179 in Thickness (ISO Style Hole)
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative F5 Chipbreaker is precision-engineered for superior turning performance. With a thickness of 0.173 to 0.179 inches and an inscribed circle of 0.389 to 0.395 inches, this chipbreaker ensures precise cuts for finishing operations. The 90-degree angle and 0.164 to 0.170 inch hole deliver optimal chip control. In stock and crafted to meet the highest standards, this chipbreaker is ideal for both consumer and institutional buyers.

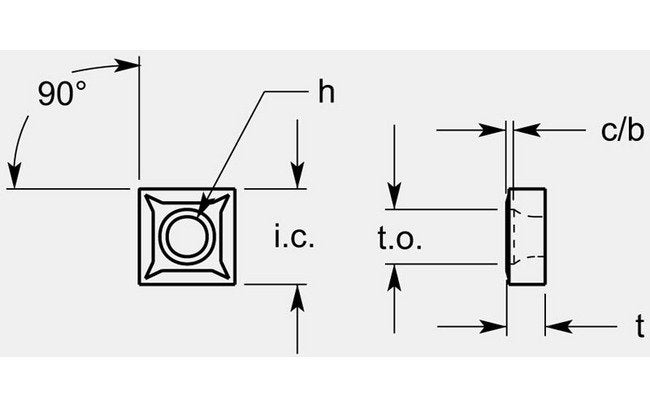

Product Specifications
Classifications Operation
Finishing
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.030 / 0.036 in
Dimensional Specification Hole
0.164 / 0.170 in
Dimensional Specification Inscribed Circle Ic
0.389/0.395 in
Dimensional Specification Thickness T
0.173 / 0.179 in
Dimensional Specification To
0.233 / 0.239 in
Grade Availability Grade Availability
In Stock
