Square Negative Indexable Turning Blanks, Thickness 0.512 / 0.522 in
Square Negative Indexable Turning Blanks, Thickness 0.512 / 0.522 in
SKU:TUR-e433d2
High-precision Square Negative Indexable blanks for turning operations. Thickness: 0.512 / 0.522 in. Customizable grade options.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Indexable Turning Blanks, Thickness 0.512 / 0.522 in
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Indexable Turning Blanks, Thickness 0.512 / 0.522 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

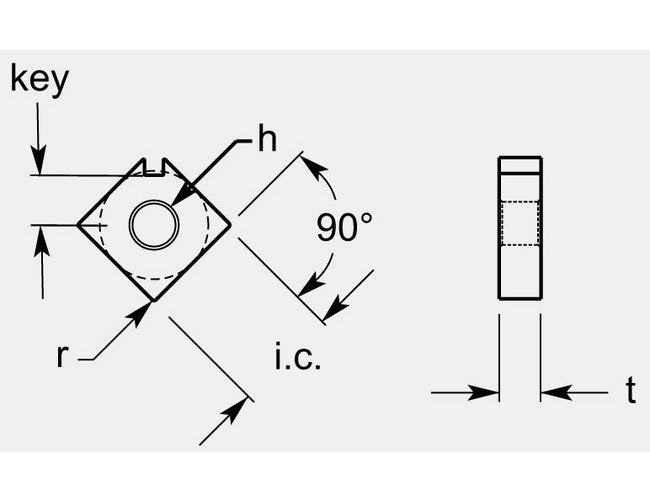

The Square Negative Indexable Turning Blanks feature a precise Thickness of 0.512 / 0.522 in, making them ideal for precision turning operations. With an Inscribed Circle of 0.512/0.522 in and a Radius of 0.012 in, these blanks deliver exceptional performance. The angles are set at 90° for efficient machining. Designed with a hole diameter of 0.202 / 0.208 in and a key size of 0.235 / 0.241 in, these blanks ensure compatibility and accuracy. Grade availability can be customized per request to meet specific project requirements.
Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.202 / 0.208 in
Dimensional Specification Inscribed Circle Ic
0.512/0.522 in
Dimensional Specification Key
0.235 / 0.241 in
Dimensional Specification Radius R
0.012 in
Dimensional Specification Thickness T
0.195 / 0.205 in
Grade Availability Grade Availability
Available on Request
