Square Negative Turning Blank with Double Countersink Hole, Height 0.163 / 0.173 in

Name: Square Negative Turning Blank with Double Countersink Hole, Height 0.163 / 0.173 in
Brand: Ultra-Met
SKU: TUR-dc3f66
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-dc3f66

Premium Square Negative Turning Blank with Double Countersink Hole for precise turning projects.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Square Negative Turning Blank with Double Countersink Hole is a precision-engineered component designed for turning applications. With a thickness ranging from 0.260 to 0.268 inches and an inscribed circle diameter of 0.514 to 0.520 inches, this turning blank offers exceptional accuracy and durability. The integrated hole with dimensions 0.163 to 0.173 inches provides added versatility. Grade availability is customizable upon request, ensuring it meets specific requirements. This product is ideal for turning projects in various industries, offering reliability and performance.

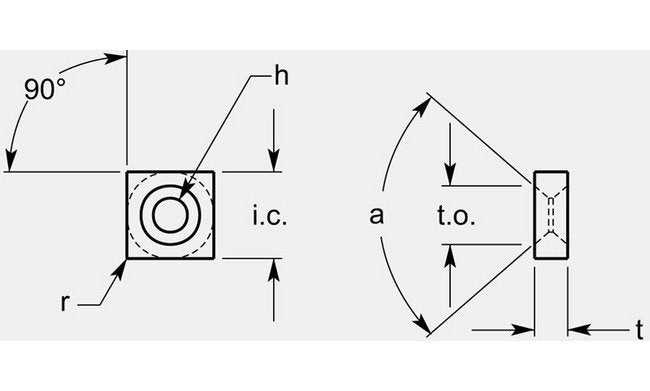

Product Specifications

Dimensional Specification A

60 Âº

Dimensional Specification Angle A

90 Âº

Dimensional Specification Hole

0.163 / 0.173 in

Dimensional Specification Inscribed Circle Ic

0.514/0.520 in

Dimensional Specification Radius R

0 in

Dimensional Specification Thickness T

0.260 / 0.268 in

Dimensional Specification To

0.259 / 0.271 in

Grade Availability Grade Availability

Available on Request

Square Negative Turning Blank with Double Countersink Hole, Height 0.163 / 0.173 in
