Square Negative Turning Blank with Double Countersinks and Hole, 0.309-0.315 in

Name: Square Negative Turning Blank with Double Countersinks and Hole, 0.309-0.315 in
Brand: Ultra-Met
SKU: TUR-1f6e40
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-1f6e40

High-precision Square Negative Turning Blank with Double Countersinks and Hole for turning applications. Thickness: 0.260-0.268 in, Hole: 0.309-0.315 in.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Square Negative Turning Blank with Double Countersinks and Hole, measuring 0.309-0.315 inches, offers precision and durability for turning applications. Crafted to perfection with a thickness of 0.260-0.268 inches and an inscribed circle of 0.764-0.770 inches, this blank ensures high-quality performance. Featuring angles of 90 degrees and 82 degrees, this product caters to diverse machining needs. Grade Availability: Available on Request.

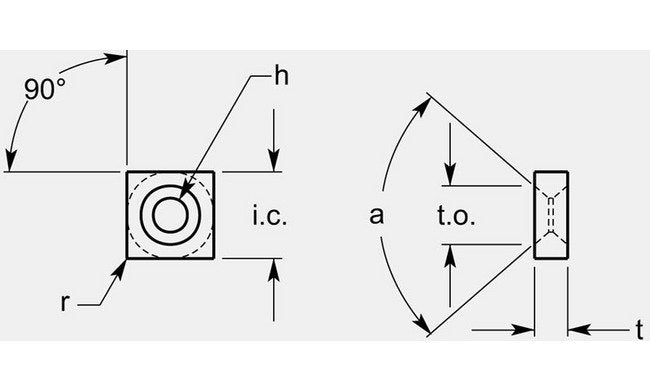

Product Specifications

Dimensional Specification A

82 Âº

Dimensional Specification Angle A

90 Âº

Dimensional Specification Hole

0.309 / 0.315 in

Dimensional Specification Inscribed Circle Ic

0.764/0.770 in

Dimensional Specification Radius R

0 in

Dimensional Specification Thickness T

0.260 / 0.268 in

Dimensional Specification To

0.432 / 0.438 in

Grade Availability Grade Availability

Available on Request

Square Negative Turning Blank with Double Countersinks and Hole, 0.309-0.315 in
