Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.206/0.212 in
Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.206/0.212 in
SKU:TUR-823a14
Premium Square Negative Turning Blank with Double Countersinks, precise dimensions for accurate machining.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.206/0.212 in
$49.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.206/0.212 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative Turning Blank with Double Countersinks and Hole features precise dimensional specifications with a thickness of 0.392/0.398 in, inscribed circles of 0.514/0.520 in, and a 90° angle. This turning blank is crafted to meet the highest quality standards, ensuring precise machining and durability. Ideal for turning applications requiring accuracy and reliability.

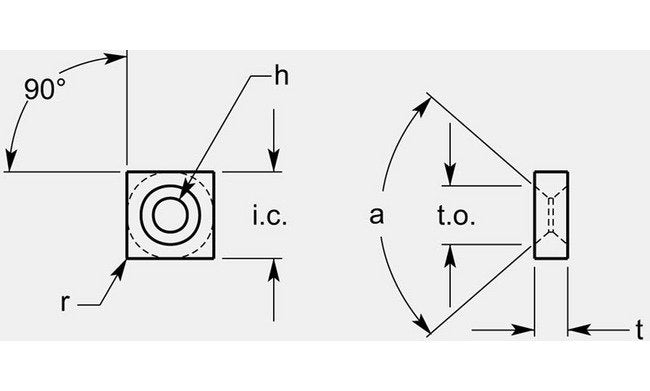

Product Specifications
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.206 / 0.212 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.392 / 0.398 in
Dimensional Specification To
0.326 / 0.332 in
Grade Availability Grade Availability
Available on Request
