Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.309 / 0.315 in
Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.309 / 0.315 in
SKU:TUR-5e21a6
High-precision Square Negative Turning Blank with Double Countersinks and Hole for turning operations. Thickness: 0.309 / 0.315 in.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.309 / 0.315 in
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with Double Countersinks and Hole, Thickness 0.309 / 0.315 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative Turning Blank with Double Countersinks and Hole is a versatile and precise component designed for Turning applications. With dimensional specifications including Thickness of 0.309 / 0.315 inches and Inscribed Circle of 0.764/0.770 inches, it ensures accuracy and efficiency in machining processes. The 90-degree Angle and 82-degree 'a' angle provide stability and precision. Grade Availability can be tailored to specific requirements upon request.

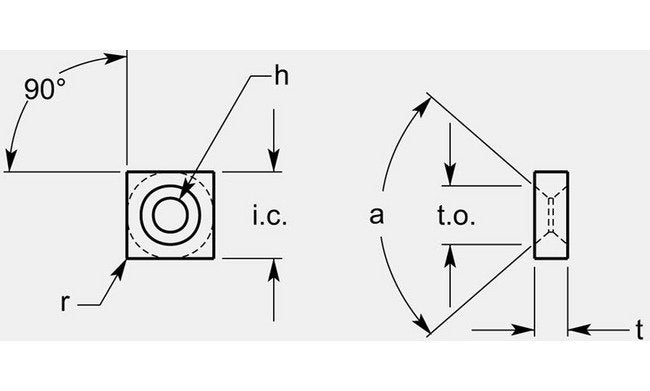

Product Specifications
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.309 / 0.315 in
Dimensional Specification Inscribed Circle Ic
0.764/0.770 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Dimensional Specification To
0.432 / 0.438 in
Grade Availability Grade Availability
Available on Request
