Square Negative Turning Blank with Double Countersinks, Hole 0.171/0.175 in
Square Negative Turning Blank with Double Countersinks, Hole 0.171/0.175 in
SKU:TUR-5c377e
Precision turning blank with double countersinks and precise hole dimensions.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Turning Blank with Double Countersinks, Hole 0.171/0.175 in
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with Double Countersinks, Hole 0.171/0.175 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

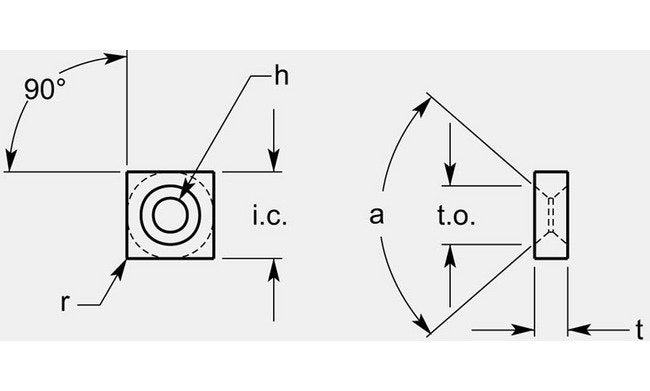

The Square Negative Turning Blank with Double Countersinks features dimensional specifications including Thickness of 0.202/0.207 in, Inscribed Circle of 0.557/0.562 in, and a 90-degree Angle. With a hole size of 0.171/0.175 in and Grade Availability upon request, this turning blank is designed for precision turning applications. It meets Federal/DoD procurement standards and is compliant with industry-specific certifications.
Product Specifications
Dimensional Specification A
60 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.171 / 0.175 in
Dimensional Specification Inscribed Circle Ic
0.557/0.562 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.202 / 0.207 in
Dimensional Specification To
0.254 / 0.260 in
Grade Availability Grade Availability
Available on Request
