Square Negative Turning Blank with Double Countersinks, Hole Diameter 0.163/0.173 in
Square Negative Turning Blank with Double Countersinks, Hole Diameter 0.163/0.173 in
SKU:TUR-10fa55
High-quality Square Negative Turning Blank for precise turning applications. Customize grade availability. Hole diameter 0.163/0.173 in.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Square Negative Turning Blank with Double Countersinks, Hole Diameter 0.163/0.173 in
$24.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with Double Countersinks, Hole Diameter 0.163/0.173 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative Turning Blank with Double Countersinks is a precision-engineered component designed for turning applications. With a thickness ranging from 0.260 to 0.268 inches and an inscribed circle diameter of 0.561 to 0.573 inches, this blank offers exceptional durability and accuracy. The double countersinks and angle of 90 degrees allow for efficient machining operations, while the hole diameter of 0.163 to 0.173 inches provides added versatility. Grade availability can be customized upon request, ensuring suitability for a wide range of industrial needs.

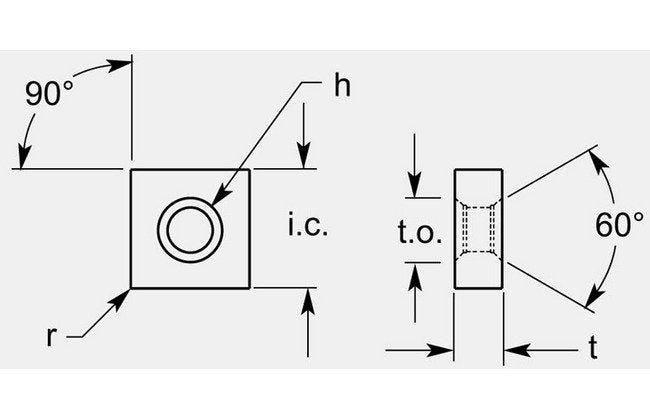

Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.163 / 0.173 in
Dimensional Specification Inscribed Circle Ic
0.561/0.573 in
Dimensional Specification Radius R
0.005 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Dimensional Specification To
0.251 / 0.261 in
Grade Availability Grade Availability
Available on Request
