Square Negative Turning Blank with Hole, 0.135/0.143 in Thick
Square Negative Turning Blank with Hole, 0.135/0.143 in Thick
SKU:TUR-fb8ec7
High-performance Square Negative Turning Blank with precise 0.135/0.143 in thickness for turning applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Turning Blank with Hole, 0.135/0.143 in Thick
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with Hole, 0.135/0.143 in Thick
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

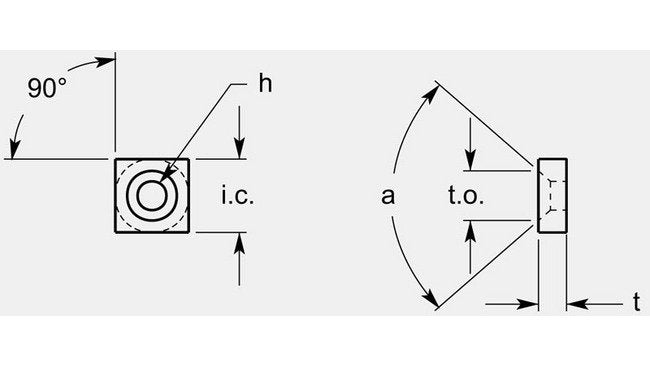

The Square Negative Turning Blank with Hole is precision-engineered for exceptional performance in turning applications. With a thickness of 0.135 to 0.143 inches, an inscribed circle of 0.514 to 0.520 inches, and a 90-degree angle, this blank ensures high-quality results. The 0.175 to 0.181-inch hole provides versatility, and it is available in various grades to suit specific requirements.
Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
90 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.175 / 0.181 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Dimensional Specification To
0.289 / 0.295 in
Grade Availability Grade Availability
Available on Request
