Square Negative Turning Blank with Hole, 0.198/0.206 in Thickness
Square Negative Turning Blank with Hole, 0.198/0.206 in Thickness
SKU:TUR-726f76
High-precision Square Negative Turning Blank with Hole, 0.198/0.206 in thickness, compliant with Federal standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Turning Blank with Hole, 0.198/0.206 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with Hole, 0.198/0.206 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative Turning Blank with Hole offers exceptional precision and durability for turning applications. With a thickness ranging from 0.198 to 0.206 inches, an inscribed circle of 0.639 to 0.645 inches, and an 82-degree angle, this blank ensures high-performance results. Compliant with Federal procurement standards, this blank is crafted to meet the highest quality requirements for industrial use. Available in various grades upon request.

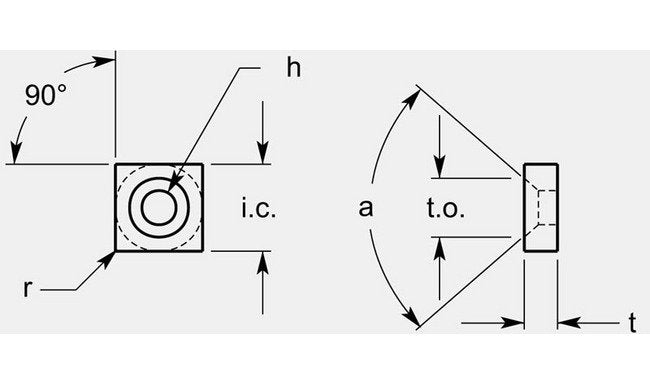

Product Specifications
Classifications Brands
Ultra-Met®
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.175 / 0.181 in
Dimensional Specification Inscribed Circle Ic
0.639/0.645 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.198 / 0.206 in
Dimensional Specification To
0.373 / 0.379 in
Grade Availability Grade Availability
Available on Request
