Square Negative Turning Blank with Hole and Double Countersink
Square Negative Turning Blank with Hole and Double Countersink
SKU:TUR-f19418
High-precision Square Negative Turning Blank with Hole and Double Countersink, Grade Availability: Available on Request.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Turning Blank with Hole and Double Countersink
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with Hole and Double Countersink
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative Turning Blank with Hole and Double Countersink is a precision-engineered piece designed for turning applications. With a dimensional specification of Thickness (t) ranging from 0.322 to 0.330 inches and Inscribed Circle (i.c.) from 0.764 to 0.770 inches, this blank offers accurate and consistent performance. The addition of double countersinks enhances versatility and precision in machining, ensuring high-quality results. Grade Availability: Available on Request.

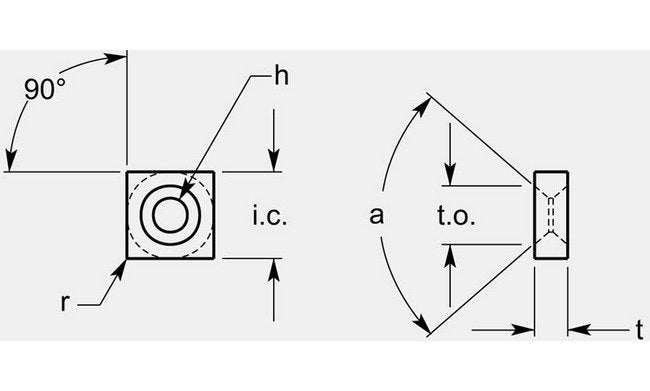

Product Specifications
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.206 / 0.212 in
Dimensional Specification Inscribed Circle Ic
0.764/0.770 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.322 / 0.330 in
Dimensional Specification To
0.432 / 0.438 in
Grade Availability Grade Availability
Available on Request
