Square Negative Turning Blank with Hole and Double Countersink Set, 0.214 / 0.220 in

Name: Square Negative Turning Blank with Hole and Double Countersink Set, 0.214 / 0.220 in
Brand: Ultra-Met
SKU: TUR-a05338
Price: 29.99 USD
Availability: OutOfStock

SKU:TUR-a05338

Elevate turning precision with Square Negative Turning Blank Set, 0.214 / 0.220 in. Ideal for institutional procurement.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your turning projects with precision using this Square Negative Turning Blank with Hole and Double Countersink Set. With a Thickness range of 0.266 to 0.274 inches and an Inscribed Circle range of 0.515 to 0.525 inches, this set ensures accuracy and consistency in machining. The addition of a Hole with a diameter of 0.214 / 0.220 inches offers versatility in design. Suitable for Turning Blanks applications, this set meets the high standards required by institutional and government procurement. Grade availability can be customized based on your needs.

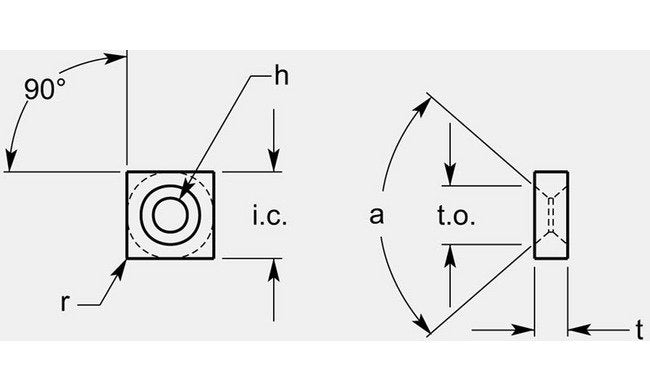

Product Specifications

Dimensional Specification A

82 Âº

Dimensional Specification Angle A

90 Âº

Dimensional Specification Hole

0.214 / 0.220 in

Dimensional Specification Inscribed Circle Ic

0.515/0.525 in

Dimensional Specification Radius R

0 in

Dimensional Specification Thickness T

0.266 / 0.274 in

Dimensional Specification To

0.341 / 0.347 in

Grade Availability Grade Availability

Available on Request

Square Negative Turning Blank with Hole and Double Countersink Set, 0.214 / 0.220 in
