Square Negative Turning Blank with ISO Style Hole
Square Negative Turning Blank with ISO Style Hole
SKU:TUR-d2f101
Enhance turning projects w/ precision. Thickness: 0.228-0.236 in, Hole: 0.213-0.219 in. Grade options available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Turning Blank with ISO Style Hole
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with ISO Style Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your turning projects with precision using the Square Negative Turning Blank. This turning blank features a thickness of 0.228 to 0.236 inches, an Inscribed Circle of 0.514 to 0.520 inches, and a 90-degree Angle. The ISO Style Hole measures 0.213 to 0.219 inches, ensuring compatibility with various turning applications. With Grade Availability upon request, this turning blank is ideal for both consumer and institutional buyers seeking high-quality materials for their projects.

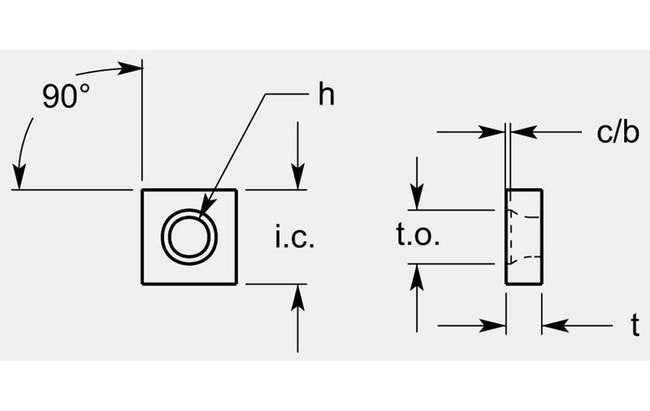

Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.043 / 0.049 in
Dimensional Specification Hole
0.213 / 0.219 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.228 / 0.236 in
Dimensional Specification To
0.292 / 0.298 in
Grade Availability Grade Availability
Available on Request
