Square Negative Turning Blank with ISO Style Hole, 0.135-0.143 in Thickness
Square Negative Turning Blank with ISO Style Hole, 0.135-0.143 in Thickness
SKU:TUR-3284d7
Premium Square Negative Turning Blank with ISO Style Hole, 0.135-0.143 in Thickness. Custom grades available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative Turning Blank with ISO Style Hole, 0.135-0.143 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative Turning Blank with ISO Style Hole, 0.135-0.143 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative Turning Blank with ISO Style Hole offers precision and durability with a thickness range of 0.135 to 0.143 inches. Designed with an Inscribed Circle of 0.264 to 0.270 inches and a 90-degree Angle, this blank ensures accurate machining. The hole diameter ranges from 0.111 to 0.117 inches, providing versatility in applications. With CB (Corner Break) dimensions ranging from 0.036 to 0.042 inches, and a TO (Thickness Offset) of 0.145 to 0.151 inches, this turning blank meets stringent quality standards. Grade availability can be customized upon request.

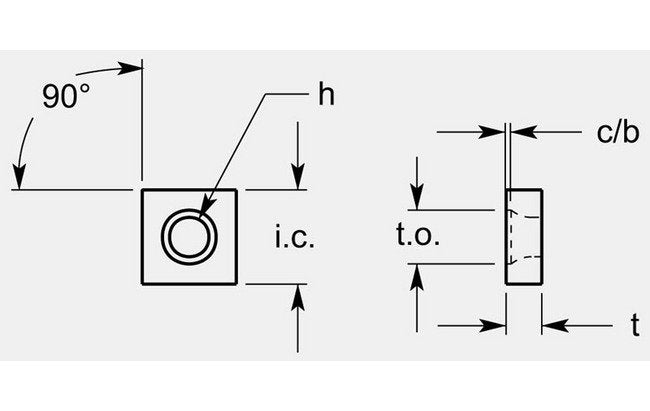

Product Specifications
Dimensional Specification Angle A
90 º
Dimensional Specification Cb
0.036 / 0.042 in
Dimensional Specification Hole
0.111 / 0.117 in
Dimensional Specification Inscribed Circle Ic
0.264/0.270 in
Dimensional Specification Thickness T
0.135 / 0.143 in
Dimensional Specification To
0.145 / 0.151 in
Grade Availability Grade Availability
Available on Request
