Square Negative with Hole and Dbl Countersink Set, Thickness 0.206 / 0.212 in
Square Negative with Hole and Dbl Countersink Set, Thickness 0.206 / 0.212 in
SKU:TUR-0c7a0b
High-quality Square Negative with Hole and Double Countersink Set, dimensions 0.206 / 0.212 in. Grade options available on request.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Negative with Hole and Dbl Countersink Set, Thickness 0.206 / 0.212 in
$29.99
Quantity: 1
Claim Your Seller Account
Square Negative with Hole and Dbl Countersink Set, Thickness 0.206 / 0.212 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Square Negative with Hole and Double Countersink Set is a versatile turning blank suitable for various applications. With a thickness range of 0.206 to 0.212 inches, an inscribed circle diameter of 0.514 to 0.520 inches, and a 90-degree angle, this set offers precision and reliability. The included holes have dimensions of 0.206 to 0.212 inches, making it easy to integrate with existing systems. Grade availability can be requested to meet specific requirements.
Ready to Grow Without Cash Flow Constraints?

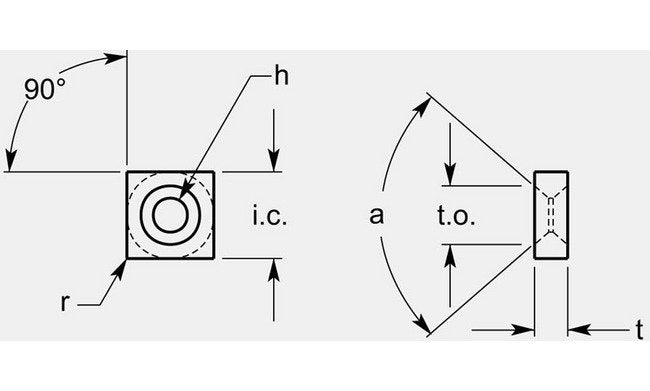

Product Specifications
Dimensional Specification A
82 º
Dimensional Specification Angle A
90 º
Dimensional Specification Hole
0.206 / 0.212 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Radius R
0 in
Dimensional Specification Thickness T
0.321 / 0.327 in
Dimensional Specification To
0.326 / 0.332 in
Grade Availability Grade Availability
Available on Request
