Square Positive Chipbreaker with Hole and Countersink, 0.200/0.206 in
Square Positive Chipbreaker with Hole and Countersink, 0.200/0.206 in
SKU:MIL-bd918b
Precision Square Chipbreaker, 0.200/0.206 in thickness, for precise cutting results.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square Positive Chipbreaker with Hole and Countersink, 0.200/0.206 in
$29.99
Quantity: 1
Claim Your Seller Account
Square Positive Chipbreaker with Hole and Countersink, 0.200/0.206 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

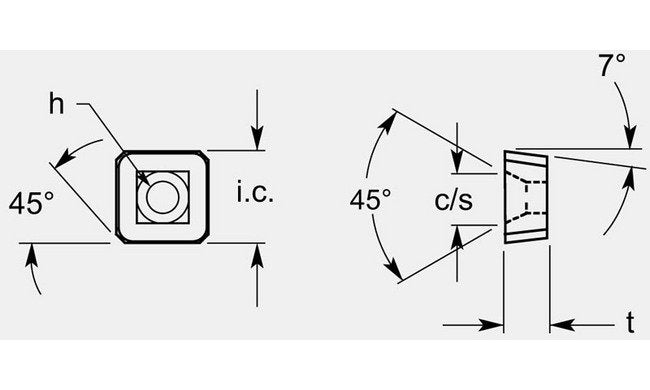

The Square Positive Chipbreaker with Hole and Countersink, featuring a thickness of 0.200/0.206 inches, is a precision-engineered milling blank designed for exceptional performance in cutting applications. With an inscribed circle of 0.514/0.520 inches and a 45-degree angle, this chipbreaker ensures precise machining results. The included hole of 0.212/0.218 inches and countersink of 0.275/0.281 inches enhance versatility. Grade availability can be tailored to specific requirements, providing a customized solution for your machining needs.
Product Specifications
Dimensional Specification Angle A
45 º
Dimensional Specification Cs
0.275 / 0.281 in
Dimensional Specification Hole
0.212 / 0.218 in
Dimensional Specification Inscribed Circle Ic
0.514/0.520 in
Dimensional Specification Thickness T
0.200 / 0.206 in
Grade Availability Grade Availability
Available on Request
