Square PUDs for 180° Radius U-Bends
Square PUDs for 180° Radius U-Bends
SKU:SQU-cd3519
Achieve seamless 180° U-Bends with Square PUDs designed for steel C-Channels. Tailored for precision and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Square PUDs for 180° Radius U-Bends
$29.99
Quantity: 1
Claim Your Seller Account
Square PUDs for 180° Radius U-Bends
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

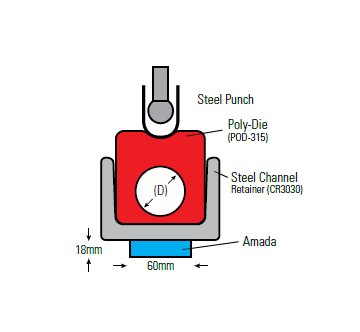

The Square PUDs for 180° Radius U-Bends are expertly crafted square or rectangular pads with a custom-molded U-shaped top surface that facilitates seamless 180-degree U-bends in a single operation. Compliant with ASTM standards, these pads are specifically designed to snugly fit into standard ASTM Steel C-Channels, functioning impeccably as both holders and retainers. Available in various deflections and precise 80A durometer hardness, with dimensions of 2.25 inches in width and height, they boast a hole diameter of 1.25 inches. Designed for streamlined functionality, these PUDs also feature a gauge capacity of 18 ga for 90-V purposes and ideal sizes for U 180-Radius at 1/16 inch and 1/4 inch. Pair them perfectly with the Retainer Part Number CR2222 for enhanced efficiency.
Product Specifications
Specifications Color
Green
Specifications Deflections
35 %
Specifications Gauge Capacity Fo 90 V
18 ga
Specifications Hardness
80A duro
Specifications Hole Diameter
1.25 in
Specifications Number Of Forming Surfaces
1
Specifications Pad Height
2.25 in
Specifications Pad Width
2.25 in
Specifications Retainer Part Number
CR2222
Specifications Size For U 180 Radius
1/16 in | 1/4 in
