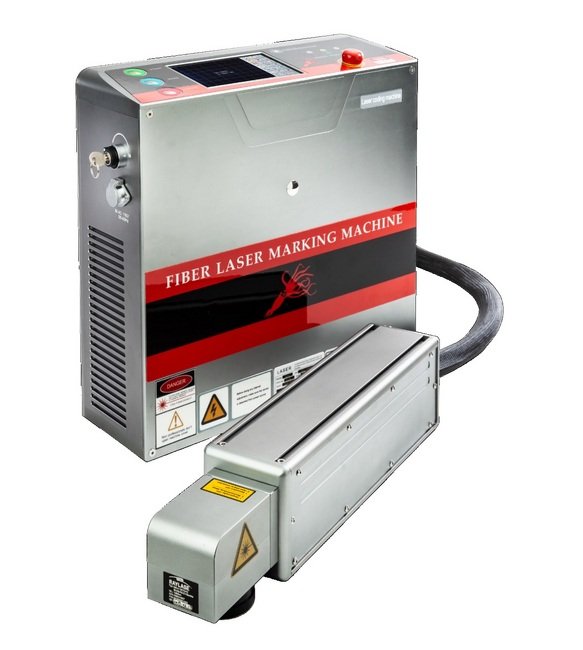

Squid Ink SQ-50F Fiber Laser Coding System
Squid Ink SQ-50F Fiber Laser Coding System
SKU:SQ5-df07dc
High-speed, versatile, and eco-friendly fiber laser coding system for industrial applications.
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Squid Ink SQ-50F Fiber Laser Coding System
$7,999.99
Quantity: 1
Claim Your Seller Account
Squid Ink SQ-50F Fiber Laser Coding System
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Squid Ink SQ-50F Fiber Laser Coding System is a high-speed solution designed for automotive, electronics, medical, aerospace, and primary coding applications. With its 1.064 μm laser wavelength and high-precision 2D scanning galvanometers, this system creates permanent marks on ceramics, plastics, metals, rubber, and more. Offering versatile coding capabilities, reliability, and high-quality code generation, this system is easy to operate with its intuitive touchscreen interface and modular accessories. Ideal for industrial use, the SQ-50F ensures cost-effective, eco-friendly coding with no consumables required.
Product Specifications
Additional Information Additional Information

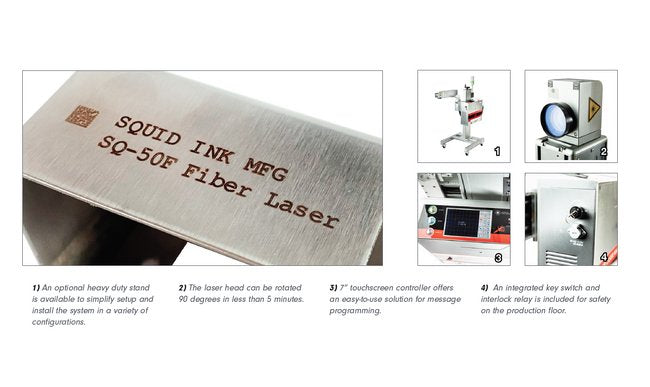

An optional heavy duty stand is available to simplify setup and install the system in a variety of configurations.The laser head can be rotated 90 degrees in less than 5 minutes.7" touchscreen controller offers an easy-to-use solution for message programming.An integrated key switch and interlock relay is included for safety on the production floor.
Application Versatility Application Versatility
Permanent coding of text, time and date, bar codes, serial numbering and moreQuick and easy installation for both stationary and moving productsEasily fits into production environments where space is limitedLaser head can be rotated 90° in less than 5 minutes
Easy To Start Simple To Run Easy To Start Simple To Run
Easy to use 7" touchscreen software built right into controllerIntuitive system includes focus finder and code area preview window on product during setup; enables initial laser marking setup within minutesEasily configurable in a variety of angles with optional mobile standOptional fume extraction systems available that connect directly to SQ-Laser systems
High Quality Code Generation High Quality Code Generation
Scribing technology produces non-dot matrix, razor sharp marks on a variety of substratesAbility to mix different fonts and logos in a single messageMultiple line coding allows for flexible message programmingDiscrete coding ability for anti-counterfeiting and traceabilityIdeal coding alternative where CIJ systems are not practical
Optional Accessories Optional Accessories
Print Trigger - Optical, fiber optic, ultrasonic, laser, metal proximity, capacitive proximityEncoder - For operation with variable speed conveyorsMobile Stands - Heavy duty stand with ability to rotate laser controller in any direction and easily raise and lower marking machine by a single operator; includes casters for easy transportation within plant90 Degree Head Pivot Extension - Mirror assembly that allows marking head to point lens in line with unit axisHand Held 10" Touchscreen Controller - Allows complete control of the system when access is limited due to mounting requirementsLaser Fume Extraction Systems - SQ-LFX or SQ-LFX PVC for the proper extraction of laser application fumesInstallation and Training - On-site installation and training available
Reliable And Economical Reliable And Economical
No ink/consumables for lower cost of ownershipClean and eco-friendly coding systemRugged cast aluminum controller bodyIntegrated key switch and interlock relay for increased safety on the production floorOperational in a wide variety of environmental conditions
Technical Specs Alternating Current Ac Voltage
90 to 220 V
Technical Specs Assembly Line Speed Support
<120 m/min
Technical Specs Brands
Squid Ink®
Technical Specs Cabinet Construction
Heavy-Duty Cast Aluminum
Technical Specs Cabinet Height
4.7 in | 12 cm
Technical Specs Cabinet Length
20 in | 51 cm
Technical Specs Cabinet Width
4 in | 10 cm
Technical Specs Character Size
Adjustable in marking range
Technical Specs Code Rotation Of Marking Line Number
0 to 360 º
Technical Specs Cooling Method
Atmospheric air-cooled
Technical Specs Dust Way
Sealed
Technical Specs Frequency
50 to 60 Hz
Technical Specs Laser Galvanometer
High-precision 2D high-speed scanning galvanometers
Technical Specs Laser Wavelength
1.064 μm
Technical Specs Marking Area
100 x 100 to 205 x 205 mm
Technical Specs Marking Focal Length
100 to 305 mm
Technical Specs Marking Speed
800 to 1000 characters/second
Technical Specs Minimum Line Width
0.1 mm
Technical Specs Non Condensing Relative Humidity Rh
10 to 90 %
Technical Specs Note For Marking Focal Length
Depending on focal length
Technical Specs Operating Environment Temperature
32 to 113 ºF | 0 to 45 ºC
Technical Specs Operating Languages
Chinese | English
Technical Specs Packaged Weight
54 lb | 24 kg
Technical Specs Positioning Accuracy
0.01 mm
Technical Specs Power Consumption
800 W
Technical Specs Power Controller Height
6 in | 15 cm
Technical Specs Power Controller Length
18 in | 46 cm
Technical Specs Power Controller Width
18 in | 46 cm
Technical Specs Print Technology
Fiber laser coding system
Technical Specs Software Features
Bar Codes | Counter | Expiration Date | Lot Counter | Shift Code | Time and Date
The Right Solution The Right Solution
Rugged design. High quality coding. Low cost of ownership. Your benefits go on and on. When it comes to industrial laser coding, rely on Squid Ink® to provide the right solution for your coding and marking needs.
