Squid UV LED Curing System
Squid UV LED Curing System
SKU:SQU-30c8e1
Achieve superior UV curing with Squid UV LED Curing System - precise, efficient, and cost-effective solution.
Regular price
$4,999.99
Regular price
Sale price
$4,999.99
Unit price
per
Initiate Order
Squid UV LED Curing System
$4,999.99
Quantity: 1
Claim Your Seller Account
Squid UV LED Curing System
$4,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

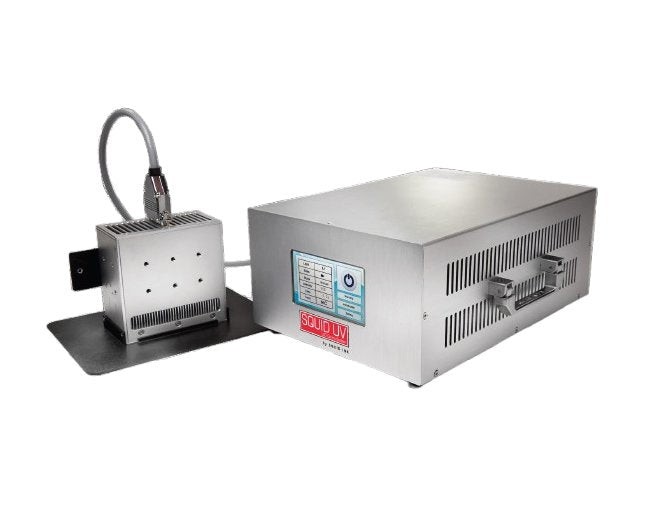

The Squid UV LED Curing System by Squid Ink is a high-performance solution designed for precise and consistent UV curing in a variety of industrial applications. With advanced LED technology offering stable and predictable curing results, this system ensures superior print quality and production efficiency. Engineered for durability and cost-effectiveness, it provides low operating costs, extended machinery lifespan, and energy efficiency, making it an ideal choice for industrial and commercial needs.
Product Specifications
Engineered Durability Engineered Durability

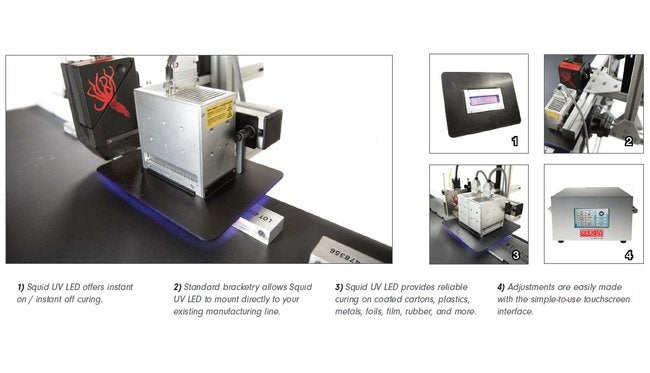

Our UV system is designed to meet the harsh demands of your application. You can be confident that Squid UVâs rugged design will withstand the most abusive industrial environments while providing superior quality UV curing. For ease of use and integration, Squid UV mounts directly to your existing manufacturing line and requires no need for preheating. The system is programmed with an easy-to-use color touchscreen and can be programmed to run in manual or automatic mode to match the operation of your manufacturing line. For quick startup, Squid UVâs fast response functionality means that the system can be powered on and ready to go at an instant, eliminating downtime and increasing your ROI.
High Curing Quality High Curing Quality
Squid UV is capable of curing inks in a 20 mm x 80 mm area from a single illumination module that can be doubled to cure an area of 40 mm x 80 mm or 20 mm x 160 mm with the addition of a second system. The system features an advanced LED module to provide consistent luminance, resulting in a reliably cured product, every time. The stability of UV LED technology makes the output of electricity predictable and stable, avoiding problems associated with conventional halogen heat lamp drying.
Low Running Cost Low Running Cost
UV LED technology provides a stable and efficient way of curing CIJ, Piezo, and Thermal inkjet inks. The integrated super cooling system considerably lowers the unitâs operating temperature to extend the life of the machinery while reducing maintenance costs. The use of UV LED curing results in a significant savings in power reduction, and time and money spent replacing lamps becomes obsolete due to the 20,000+ hour illumination runtime. For comparison, Squid UV curing systems use about 75% less energy than typical UV arc lamp curing.
Technical Specs Alternating Current Ac Voltage
90 to 220 V
Technical Specs Brands
Squid Ink
Technical Specs Controller Dimensions
13 x 9 x 5.2 in | 33 x 23 x 13 cm
Technical Specs Control Modes
Automatic | Manual
Technical Specs Dual Head Effective Illumination Area
20 x 160 mm | 40 x 80 mm
Technical Specs Dual Head Lamp Shield Dimensions
9 x 9.3 in | 23 x 24 cm
Technical Specs Environmental Working Temperature
32 to 95 ºF | 0 to 35 ºC
Technical Specs Frequency
50 Hz | 60 Hz
Technical Specs Illuminant Output Control
10 to 100 %
Technical Specs Illuminating Head Dimensions
4.7 x 2.6 x 4.7 in | 12 x 7 x 12 cm
Technical Specs Irradiancy
12 W/cm²
Technical Specs Light Emitting Diode Led Lifetime
20,000 hours or more
Technical Specs Note For Dual Head Effective Illumination Area
Dual head setup requires 1 controller per illuminating head
Technical Specs Note For Dual Head Lamp Shield Dimensions
Dual head setup requires 1 controller per illuminating head
Technical Specs Note For Production Line Dry Time
Depending on substrate
Technical Specs Production Line Dry Time
0 to 35 m/min
Technical Specs Recommended Illumination Height From Substrate
1.5 to 10 mm
Technical Specs Single Head Effective Illumination Area
20 x 80 mm
Technical Specs Single Head Lamp Shield Dimensions
9 x 6.7 in | 23 x 17 cm
Technical Specs Storage Environment
14 to 140 ºF | -10 to 60 ºC
Technical Specs Watts For Dual Head
1000 W
Technical Specs Watts For Single Head
500 W
Technical Specs Wave Length
395 nm
Technical Specs Wave Length Tolerance
5 nm
The Right Solution The Right Solution
Rugged design. Low maintenance operation. Low cost of ownership. Your benefits go on an on. When it comes to your UV curing needs, rely on Squid Ink to provide the right solution for your industrial and commercial applications.
The Uv Advantage The Uv Advantage
As a new addition to Squid Inkâs growing family of industrial equipment offerings, Squid UV gives users more solutions for their coding applications. In addition, UV LED curing systems are clean and efficient, improve print quality due to immediate dry time, help to increase production rates, and require little space on production lines. Any way you look at it, Squid UV curing systems provide significant benefits to your manufacturing process.
