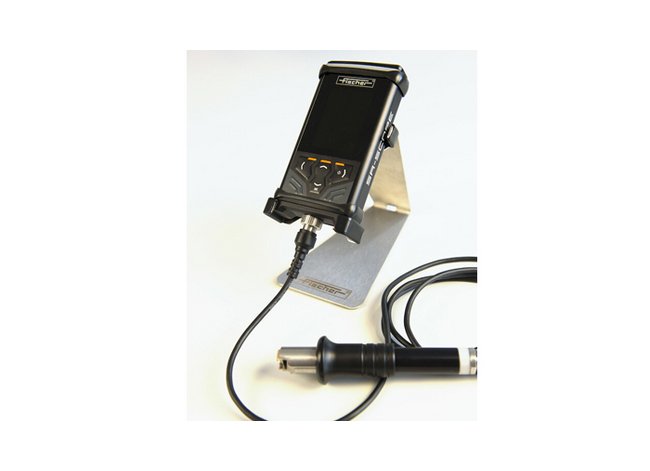

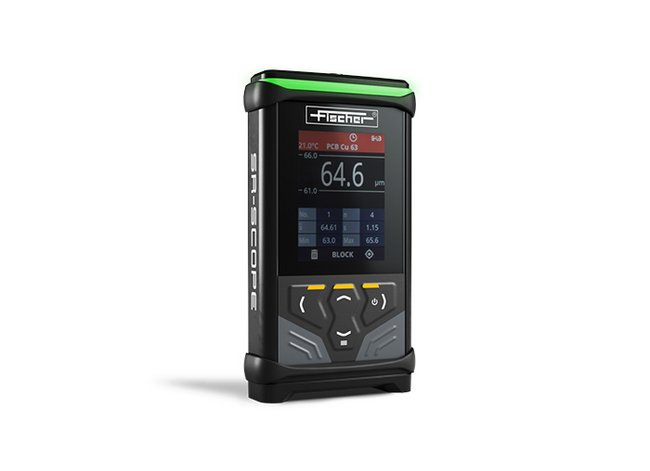

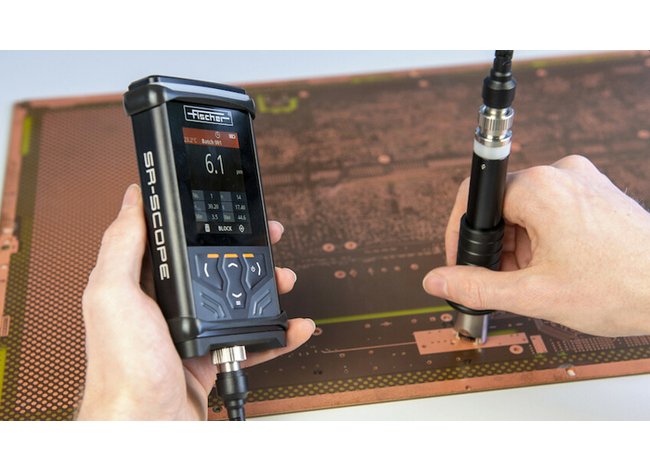

Robust and powerful handheld instrument for measuring copper thickness on printed circuit boards using the electrical resistance method (EN 14571).
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features
- Ergonomic aluminum housing- Shockproof, dustproof and waterproof (IP64)- One-handed operation via 4 keys for optimal work- Visual, haptic and acoustic signal for user-defined limit values of specific or all parameters- High contrast, color, rotating display for any viewing angle- Robust probe connector- USB interface for secure and fast data transfer- Additional USB slot in battery compartment for BT dongle for wireless data transfer- Rechargeable Lithium battery, up 24 hours of run time - Intuitive menu navigation- Graphic operating aids guide the user through each step of the process- Memory for 250,000 values in up to 2,500 batches- Support of digital probes- 22 languages can be set- External charger not included (optionally available)
Specifications Intended Application
Coating thickness measurement (copper)
Specifications Interfaces
Bluetooth, Universal Serial Bus (USB-C)
Specifications Measurement Method
Electrical resistance method
Specifications Number Of Measurements Storing Capacity
250,000
