SRI Series 2.1mm Reducing Adapter Fitting
SRI Series 2.1mm Reducing Adapter Fitting
SKU:SRI-3c1225
Reliable and industry-changing Reducing Adapter Fitting for optimal tube-to-port connections. Enhances safety, productivity, and cost-efficiency.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SRI Series 2.1mm Reducing Adapter Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SRI Series 2.1mm Reducing Adapter Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

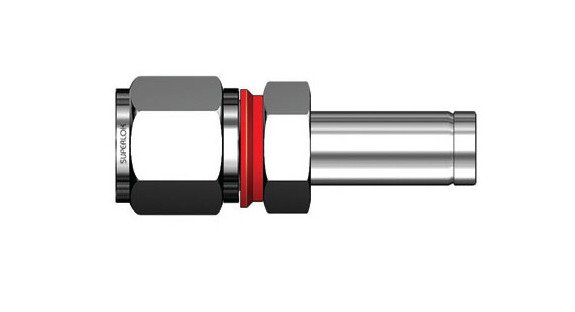

The SRI Series 2.1mm Reducing Adapter Fitting is expertly designed to connect fractional tubes to SUPERLOK® ports. With precise dimensions and a robust construction featuring Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, and Stainless Steel materials, this fitting ensures optimal performance and durability. Its innovative i-Fitting® components include a check ring for perfect compression, enhancing safety in high-pressure environments, increasing productivity, and reducing costs. Industry-changing and patented, this fitting is a reliable solution for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

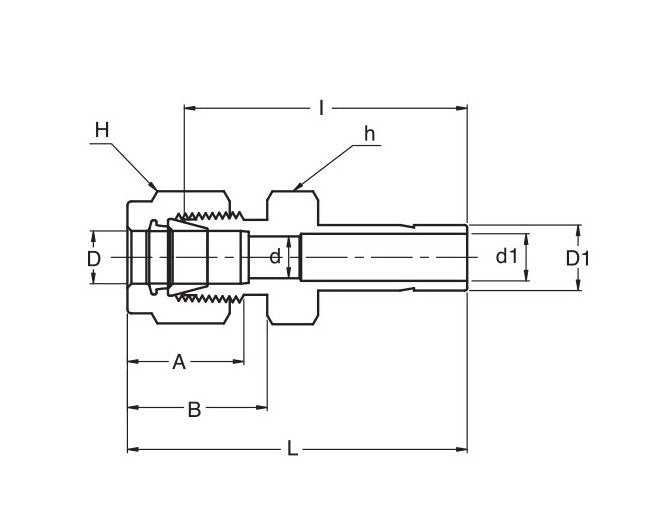

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
29.46 mm
Technical Specs Dimension L
36.83 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.83 mm
Technical Specs Minimum Dimension D1
2.1 mm
Technical Specs Standard Size
1 to 4 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Tube Outside Diameter D1
1/8 in
Technical Specs Width Across Flat H
9/16 in
