SRI Series 4.1mm to 6mm Reducing Adapter Fitting
SRI Series 4.1mm to 6mm Reducing Adapter Fitting
SKU:SRI-20e641
Premium SRI Series Reducing Adapter for secure metric tube connections, featuring i-Fitting® components for enhanced safety and productivity.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SRI Series 4.1mm to 6mm Reducing Adapter Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SRI Series 4.1mm to 6mm Reducing Adapter Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

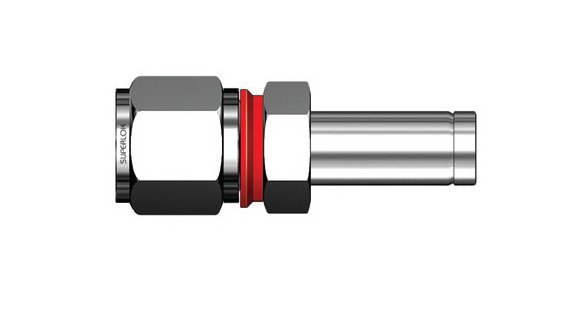

The SRI Series 4.1mm to 6mm Reducing Adapter Fitting is crafted to connect metric tubes to metric SUPERLOK® ports with precision engineering. Made from high-quality materials such as Alloy 625, Alloy 825, Stainless Steel, and more, this adapter ensures a secure and leak-free connection. Its i-Fitting® components and patented design by BMT provide enhanced compression, installer safety, and productivity. Ideal for high-pressure and chemical environments, this adapter meets industry standards for reliability and performance.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

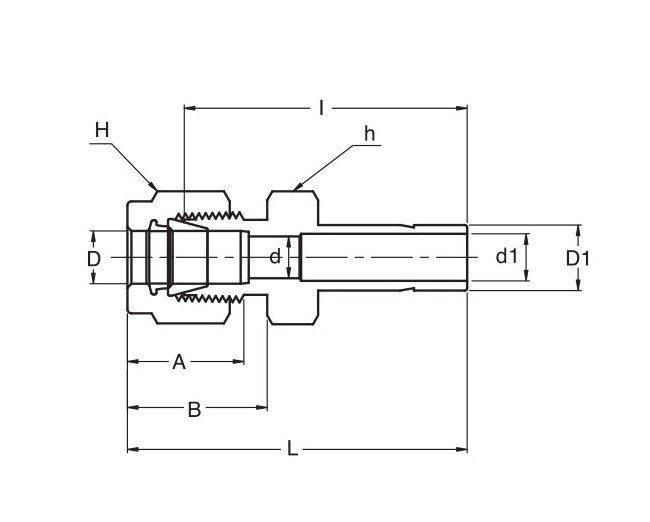

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.2 mm
Technical Specs Dimension B
18.6 mm
Technical Specs Dimension I
32.8 mm
Technical Specs Dimension L
40.3 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Minimum Dimension D1
4.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Tube Outside Diameter D1
6 mm
Technical Specs Width Across Flat H
16 mm
