SRPC 1/2 inch to 1/4 inch Reducing Port Connector Fitting
SRPC 1/2 inch to 1/4 inch Reducing Port Connector Fitting
SKU:SRP-453ed0

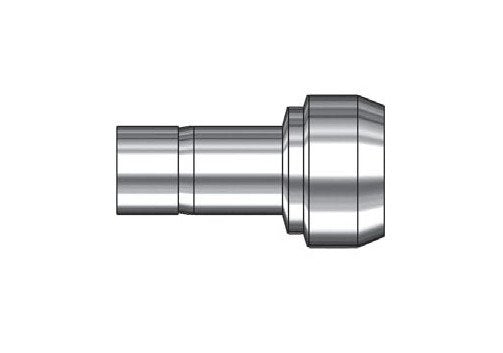

Connect SUPERLOK® Ports to Male AN fittings seamlessly with the SRPC 1/2 inch to 1/4 inch Reducing Port Connector Fitting, ideal for gas systems and high-performance applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SRPC 1/2 inch to 1/4 inch Reducing Port Connector Fitting
$24.99
Quantity: 1
Claim Your Seller Account
SRPC 1/2 inch to 1/4 inch Reducing Port Connector Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRPC 1/2 inch to 1/4 inch Reducing Port Connector Fitting from the SRPC Series is engineered to connect Fractional SUPERLOK® Ports to Male AN fittings with precision and reliability. Made of high-quality stainless steel tubing, fully annealed and meeting ASTM A269, A213 standards, this fitting ensures seamless integration and optimal performance. Designed for gas systems, vacuum, cryogenic, and high-temperature applications, it undergoes rigorous testing to guarantee repeatable and reliable operation in demanding environments. Follow strict installation instructions for secure connections, maintaining efficiency and safety.
Product Specifications
Compatibility Compatibility
SUPERLOK® Tube fittings are designed and manufactured to be interchangeable with other Tube Fittings manufactured by other industry leading manufacturers. When required compatibility testing can be performed by an independent third party and the reports can be provided. Please consult BMT(SUPERLOK®) sales representative for compatibility.
Gas System Application Gas System Application
SUPERLOK® Tube Fittings are appropriate for Gas Systems, but the implementation of certain standards mentioned below should be adhered to just as in other systems.Tubing hardness must be less than that of the ferrules.Tubing should be free of surface imperfections, defects and round in shape.Refer to Table 2 on page 14 for selection of the appropriate wall thickness. (Only shaded areas should be selected for Gas Systems)Tubing ends must be cut squarely and perpendicular to the center-line of the tubing. After the tubing is cut it must be deburred on both the inside and outside with a High quality fully sharpened deburring tool.Follow the SUPERLOK® Installation Instructions from pages 10 to 11 in the catalog.Do not attempt to bend the tubing after a fitting has been Installed in a fixed position.Tubing Systems should be installed to allow for adequate expansion and contraction as well as ease of maintenance.
Hardness Limitation Hardness Limitation
High quality stainless steel tubing that is fully annealed; Seamless or Welded per ASTM A269, A213 or equivalent should be used with SUPERLOK® Tube fittings. The tubing must be a maximum hardness of HRB 90 or less on the Rockwell Scale, however HRB 80 is more suitable for bending and offers a greater difference in hardness to the ferrules. This difference in hardness offers more ease in assembly and better interaction between the ferrules and the tubing.
Installation Instructions Installation Instructions
Remove nut and ferrules from the first of two SUPERLOK ports to be connected.Slip nut ( no ferrules) over machined ferrule end of port connector.Insert port connector into SUPERLOK port 1 and snug by hand. Tighten with wrench 1/4 turn only. For 1/8 and 3/16 in., 2, 3, and 4mm tube fittings, tighten only 1/8 turn. Subsequent connections are made by tightening slightly with a wrench after snugging the nut by hand.Insert other end of port connector into SUPERLOK port 2 and tighten nut 1-1/4 turns from finger-tight. For 1/16, 1/8 and 3/16 in., 2, 3, and 4mm tube fittings, only 3/4 turn from finger-tight is necessary.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

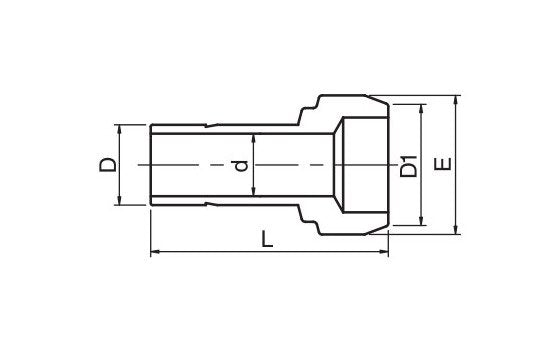

Technical Specs Dimension D
4.40 mm
Technical Specs Dimension E
15.74 mm
Technical Specs Dimension I
15.74 mm
Technical Specs Dimension I1
3.81 mm
Technical Specs Dimension L
29.21 mm
Technical Specs Reduced Tube Outside Diameter D
1/4 in
Technical Specs Tube Outside Diameter D1
1/2 in
Vacuum Cryogenic And High Temperature Applications Vacuum Cryoge
SUPERLOK® Tube Fittings have been tested in vacuum, Cryogenic and High Temperatures insuring repeatable and reliable performance in the severest of applications.
