SRUI Series 12mm to 6mm Reducing Union
SRUI Series 12mm to 6mm Reducing Union
SKU:SRU-6ec65d
Enhance tube connections with the SRUI Series 12mm to 6mm Reducing Union for efficient compression and increased installer safety in high-pressure environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SRUI Series 12mm to 6mm Reducing Union
$24.99
Quantity: 1
Claim Your Seller Account
SRUI Series 12mm to 6mm Reducing Union
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

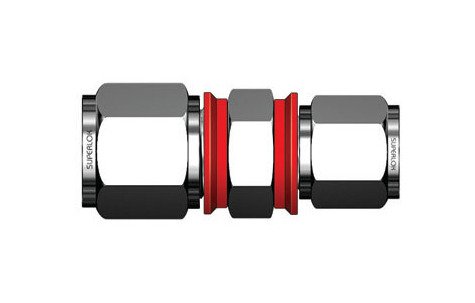

The SRUI Series 12mm to 6mm Reducing Union is crafted with precision to connect metric tubes seamlessly. Engineered with high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, it features i-Fitting® components for optimal compression and increased safety in high-pressure environments. This industry-changing design enhances productivity, reduces costs, and ensures reliable valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

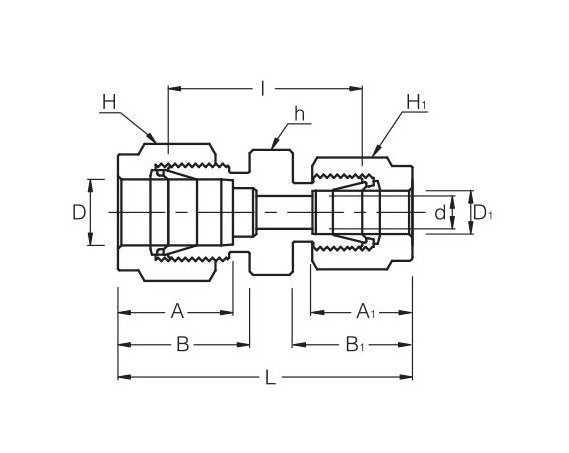

Technical Specs Dimension A
22.8 mm
Technical Specs Dimension A1
15.3 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension B1
17.7 mm
Technical Specs Dimension I
29.5 mm
Technical Specs Dimension L
47.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Tube Outside Diameter D1
6 mm
Technical Specs Width Across Flat H
22 mm
Technical Specs Width Across Flat H1
14 mm
