SRUTI Series 12mm/8mm Reducing Union Tee Fitting
SRUTI Series 12mm/8mm Reducing Union Tee Fitting
SKU:SRU-ee0557
Enhance tube connections with our precision-engineered SRUTI 12mm/8mm Tee Fitting, ensuring safety, productivity, and durability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SRUTI Series 12mm/8mm Reducing Union Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SRUTI Series 12mm/8mm Reducing Union Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series 12mm/8mm Reducing Union Tee Fitting is a versatile solution for connecting metric tubes. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliable performance in various applications. With its innovative i-Fitting® components and built-in gap gauge feature, it eliminates over- and under-tightening issues, enhancing installer safety and productivity in high-pressure environments. Engineered with precision and industry-changing patented design by BMT, this fitting meets the demands of both consumer and institutional buyers, making it a top choice for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

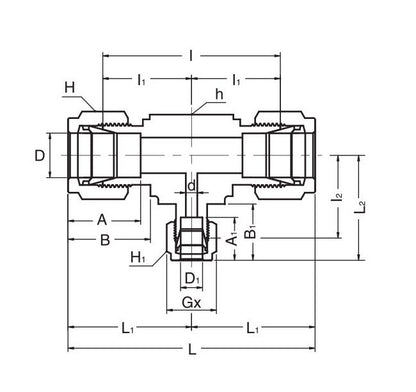

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
23.0 mm
Technical Specs Dimension A1
16.8 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension B1
19.2 mm
Technical Specs Dimension I
51.8 mm
Technical Specs Dimension I1
25.90 mm
Technical Specs Dimension I2
25.1 mm
Technical Specs Dimension L
72.5 mm
Technical Specs Dimension L1
36.2 mm
Technical Specs Dimension L2
33.2 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
6.4 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Tube Outside Diameter D1
8 mm
Technical Specs Width Across Flat H
22 mm
Technical Specs Width Across Flat H1
16 mm
