SRUTI Series 12mm to 6mm Reducing Union Tee Fitting
SRUTI Series 12mm to 6mm Reducing Union Tee Fitting
SKU:SRU-d1ab50
High-performance SRUTI Series 12mm to 6mm Reducing Union Tee Fitting for metric tube connections, featuring i-Fitting® design for safety & efficiency.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SRUTI Series 12mm to 6mm Reducing Union Tee Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SRUTI Series 12mm to 6mm Reducing Union Tee Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series 12mm to 6mm Reducing Union Tee Fitting is a precision-engineered component designed to connect metric tubes efficiently. Crafted from a range of high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability in diverse applications. Its innovative i-Fitting® design features a built-in gap gauge for perfect compression, enhancing safety in high-pressure environments while streamlining installation processes. With dimensions ranging from 6mm to 25mm, this fitting is versatile and adaptable to various systems, offering a seamless solution for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

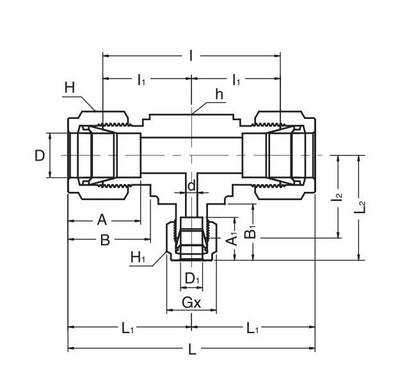

Technical Specs Dimension A
23.0 mm
Technical Specs Dimension A1
15.3 mm
Technical Specs Dimension B
22.0 mm
Technical Specs Dimension B1
17.8 mm
Technical Specs Dimension I
51.8 mm
Technical Specs Dimension I1
25.90 mm
Technical Specs Dimension I2
25.90 mm
Technical Specs Dimension L
72.5 mm
Technical Specs Dimension L1
36.2 mm
Technical Specs Dimension L2
33.3 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Tube Outside Diameter D1
6 mm
Technical Specs Width Across Flat H
22 mm
Technical Specs Width Across Flat H1
14 mm
