SRUTI Series 1in x 3/8in Reducing Union Tee Fitting
SRUTI Series 1in x 3/8in Reducing Union Tee Fitting
SKU:SRU-b23a3c
Enhance tube connections with the SRUTI Series Reducing Union Tee Fitting for unmatched durability and safety in high-pressure environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SRUTI Series 1in x 3/8in Reducing Union Tee Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SRUTI Series 1in x 3/8in Reducing Union Tee Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series Reducing Union Tee Fitting is precision-engineered to connect fractional tubes seamlessly. Crafted from a range of high-quality materials including Alloy 625, Stainless Steel, and Aluminum, this fitting offers unrivaled durability and corrosion resistance. With patented i-Fitting® components for optimal compression, enhanced safety in high-pressure environments, and increased installation efficiency, this fitting is a game-changer in the industry. Versatile in applications and designed with installer safety and productivity in mind, it meets the stringent requirements of institutional and government procurement standards.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

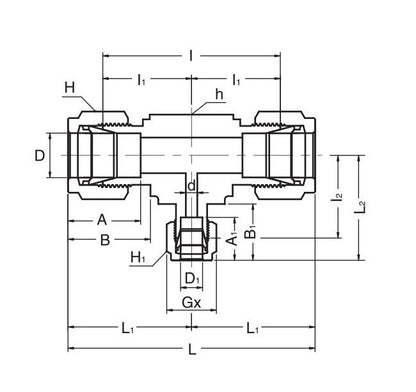

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension A1
16.76 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension B1
19.30 mm
Technical Specs Dimension I
73.66 mm
Technical Specs Dimension I1
36.83 mm
Technical Specs Dimension I2
34.54 mm
Technical Specs Dimension L
98.04 mm
Technical Specs Dimension L1
49.02 mm
Technical Specs Dimension L2
41.91 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Tube Outside Diameter D1
3/8 in
Technical Specs Width Across Flat H
1-1/2 in
Technical Specs Width Across Flat H1
1-1/16 in
