SRUTI Series 25mm x 12mm Reducing Union Tee Fitting
SRUTI Series 25mm x 12mm Reducing Union Tee Fitting
SKU:SRU-47fee5
Enhance tube connections seamlessly with the SRUTI Series Reducing Union Tee Fitting, ensuring safety, efficiency, and cost-effectiveness.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SRUTI Series 25mm x 12mm Reducing Union Tee Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SRUTI Series 25mm x 12mm Reducing Union Tee Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series 25mm x 12mm Reducing Union Tee Fitting is designed to connect metric tubes efficiently and securely. Crafted from high-quality materials such as Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures durability and reliability. Featuring innovative i-Fitting® components that include a built-in check ring for precise compression, it enhances installer safety, productivity, and cost-efficiency. With dimensions meeting industry standards and compatibility with various materials, this fitting is a game-changer in valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

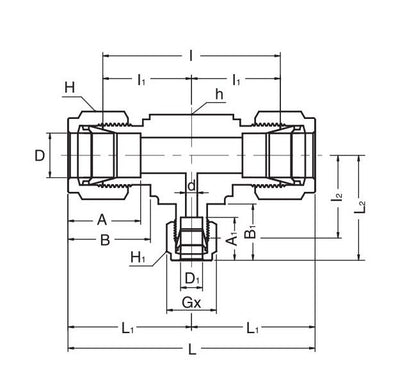

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.3 mm
Technical Specs Dimension A1
23.0 mm
Technical Specs Dimension B
26.6 mm
Technical Specs Dimension B1
22.2 mm
Technical Specs Dimension I
73.6 mm
Technical Specs Dimension I1
36.8 mm
Technical Specs Dimension I2
34.5 mm
Technical Specs Dimension L
98.2 mm
Technical Specs Dimension L1
49.1 mm
Technical Specs Dimension L2
44.8 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Tube Outside Diameter D1
12 mm
Technical Specs Width Across Flat H
38 mm
Technical Specs Width Across Flat H1
22 mm
