SRUTI Series 25mm x 20mm Reducing Union Tee Fitting
SRUTI Series 25mm x 20mm Reducing Union Tee Fitting
SKU:SRU-c433d8
Enhance tube connections with our SRUTI Series 25mm x 20mm Reducing Union Tee Fitting, featuring i-Fitting® technology for safety and efficiency in industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SRUTI Series 25mm x 20mm Reducing Union Tee Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SRUTI Series 25mm x 20mm Reducing Union Tee Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series 25mm x 20mm Reducing Union Tee Fitting is a high-quality industrial component designed to connect metric tubes seamlessly. Crafted from a range of durable materials including Alloy 625, Stainless Steel, and more, this fitting features i-Fitting® technology for enhanced safety and efficiency. Its patented design includes a built-in check ring for perfect compression, ideal for high-pressure and chemical environments, improving installation precision and reducing costs. Ensure a reliable connection with this industry-changing union tee fitting.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

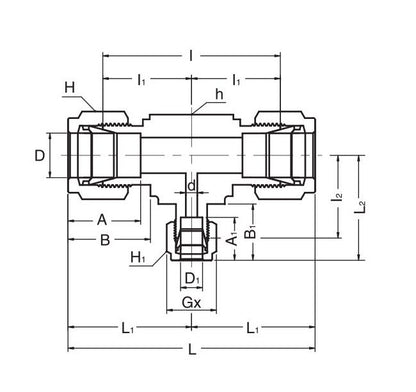

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
31.3 mm
Technical Specs Dimension A1
26.6 mm
Technical Specs Dimension B
26.6 mm
Technical Specs Dimension B1
22.6 mm
Technical Specs Dimension I
73.6 mm
Technical Specs Dimension I1
36.8 mm
Technical Specs Dimension I2
34.5 mm
Technical Specs Dimension L
98.2 mm
Technical Specs Dimension L1
49.1 mm
Technical Specs Dimension L2
45.2 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.9 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Tube Outside Diameter D1
20 mm
Technical Specs Width Across Flat H
38 mm
Technical Specs Width Across Flat H1
32 mm
