SRUTI Series Reducing Union Tee 25mm to 18mm Fitting
SRUTI Series Reducing Union Tee 25mm to 18mm Fitting
SKU:SRU-c2a2db
High-performance SRUTI Series Reducing Union Tee for metric tube connections. Innovative i-Fitting® design ensures safety, productivity, and cost-efficiency.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SRUTI Series Reducing Union Tee 25mm to 18mm Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SRUTI Series Reducing Union Tee 25mm to 18mm Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series Reducing Union Tee Fitting is a precision-engineered component designed to seamlessly connect metric tubes with diameters of 25mm and 18mm. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures superior durability and performance in various demanding environments. Its innovative i-Fitting® design features a built-in gap gauge, enhancing installation safety, productivity, and cost-efficiency. Ideal for valve connections, this fitting eliminates over- and under-tightening issues, making it a reliable choice for high-pressure and hazardous chemical applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

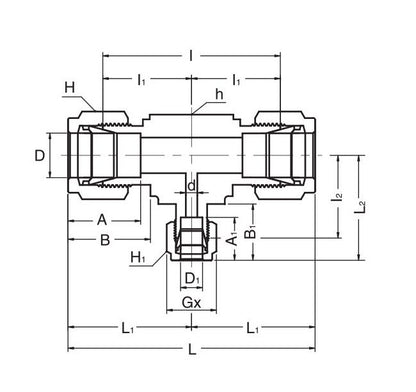

Technical Specs Dimension A
31.3 mm
Technical Specs Dimension A1
24.8 mm
Technical Specs Dimension B
26.6 mm
Technical Specs Dimension B1
22.5 mm
Technical Specs Dimension I
73.6 mm
Technical Specs Dimension I1
36.8 mm
Technical Specs Dimension I2
34.5 mm
Technical Specs Dimension L
98.2 mm
Technical Specs Dimension L1
49.1 mm
Technical Specs Dimension L2
45.1 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
25 mm
Technical Specs Tube Outside Diameter D1
18 mm
Technical Specs Width Across Flat H
38 mm
Technical Specs Width Across Flat H1
30 mm
