The SRUTI Series 1/2 Inch and 1/4 Inch Reducing Union Tee Fitting is engineered to connect fractional tubes with precision and reliability. Crafted from a variety of high-quality materials including Alloy 625, Stainless Steel, and more, this fitting boasts dimensions that ensure seamless installation in diverse applications. The innovative i-Fitting® components, such as the built-in check ring for perfect compression, enhance safety, efficiency, and cost-effectiveness. Ideal for valve connections, the patented design by BMT sets a new standard in the industry.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

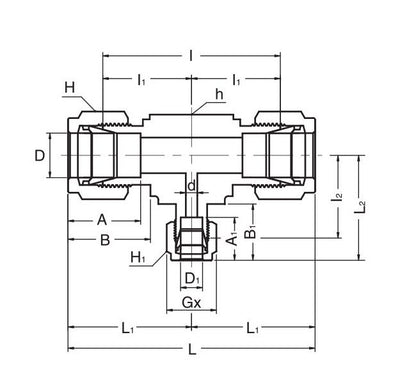

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension A1
15.24 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension B1
17.78 mm
Technical Specs Dimension I
51.81 mm
Technical Specs Dimension I1
25.90 mm
Technical Specs Dimension I2
24.38 mm
Technical Specs Dimension L
72.13 mm
Technical Specs Dimension L1
36.06 mm
Technical Specs Dimension L2
31.75 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Tube Outside Diameter D1
1/4 in
Technical Specs Width Across Flat H
7/8 in
Technical Specs Width Across Flat H1
9/16 in
