The SRUTI Series 3/4 Inch (in) Diameter and 3/8 Inch (in) Diameter Reducing Union Tee Fitting is designed for precise fractional tube connections. Crafted from high-quality Alloy 625, Alloy 825, Alloy C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, or Stainless Steel, this fitting includes innovative i-Fitting® components for optimal compression, increased safety, and improved productivity. With its industry-changing, patented design by BMT, this fitting ensures perfect installations in high-pressure and hazardous chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

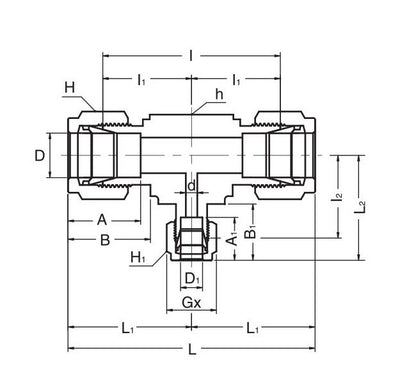

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension A1
16.76 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension B1
19.30 mm
Technical Specs Dimension I
59.43 mm
Technical Specs Dimension I1
29.71 mm
Technical Specs Dimension I2
29.71 mm
Technical Specs Dimension L
79.75 mm
Technical Specs Dimension L1
39.87 mm
Technical Specs Dimension L2
37.08 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Tube Outside Diameter D1
3/8 in
Technical Specs Width Across Flat H
1-1/8 in
Technical Specs Width Across Flat H1
11/16 in
