SRUTI Series Reducing Union Tee Fitting 8mm to 6mm Diameter
SRUTI Series Reducing Union Tee Fitting 8mm to 6mm Diameter
SKU:SRU-4f802b
Discover the SRUTI Series Reducing Union Tee Fitting - expertly designed for precise metric tube connections.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SRUTI Series Reducing Union Tee Fitting 8mm to 6mm Diameter
$35.99
Quantity: 1
Claim Your Seller Account
SRUTI Series Reducing Union Tee Fitting 8mm to 6mm Diameter
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SRUTI Series Reducing Union Tee Fitting offers precise connections for metric tubes with dimensions meeting strict industry standards. Crafted from high-quality materials like Alloy 625, Alloy 825, Stainless Steel, and more, this fitting boasts a patented i-Fitting® design that enhances safety in high-pressure environments. Its built-in gap gauge prevents over-tightening, promotes installer safety, and ensures optimal compression, making it ideal for demanding applications. With dimensions ranging from 6mm to 25mm, this fitting is versatile, reliable, and conducive to increased productivity while reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

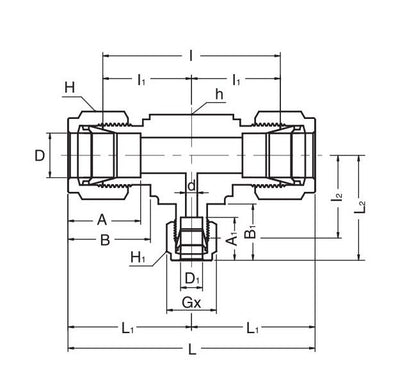

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.8 mm
Technical Specs Dimension A1
15.3 mm
Technical Specs Dimension B
19.2 mm
Technical Specs Dimension B1
17.8 mm
Technical Specs Dimension I
46.2 mm
Technical Specs Dimension I1
23.1 mm
Technical Specs Dimension I2
21.6 mm
Technical Specs Dimension L
62.4 mm
Technical Specs Dimension L1
31.2 mm
Technical Specs Dimension L2
29.0 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
8 mm
Technical Specs Tube Outside Diameter D1
6 mm
Technical Specs Width Across Flat H
16 mm
Technical Specs Width Across Flat H1
14 mm
