SRVL Series 1/2 Inch Low Pressure Relief Valve
SRVL Series 1/2 Inch Low Pressure Relief Valve
SKU:REL-b476c8
Secure precise pressure control with the SRVL Series 1/2 Inch Low Pressure Relief Valve. Compact design, adjustable cracking pressure, and tested for quality assurance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SRVL Series 1/2 Inch Low Pressure Relief Valve
$49.99
Quantity: 1
Claim Your Seller Account
SRVL Series 1/2 Inch Low Pressure Relief Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK® SRVL Series 1/2 Inch Low Pressure Relief Valve is a versatile solution for precise pressure control. With multiple springs offering a selection of set pressure ranges, this valve ensures reliable performance in diverse applications. Its compact design, adjustable cracking pressure, and lock wire feature make it a secure and efficient choice. Each valve is extensively tested at the factory for quality assurance, meeting the highest standards for accuracy and repeatability.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

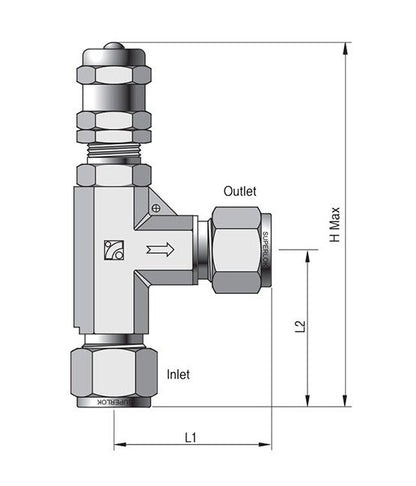

Technical Specs Dimension H
103.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
35.7 mm
Technical Specs Inlet End Connections
1/2 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Series
SRVH
