SRVL Series 1/2” Low Pressure Relief Valve

SRVL Series 1/2” Low Pressure Relief Valve

SKU:REL-035ebe

Get precise pressure control with the SUPERLOK® SRVL Series 1/2” Low Pressure Relief Valve, offering reliability and performance for various applications.

Regular price $89.99
Regular price Sale price $89.99
Sale

Initiate Order

SRVL Series 1/2” Low Pressure Relief Valve

SRVL Series 1/2” Low Pressure Relief Valve

$89.99

Quantity: 1

Claim Your Seller Account

SRVL Series 1/2” Low Pressure Relief Valve

SRVL Series 1/2” Low Pressure Relief Valve

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

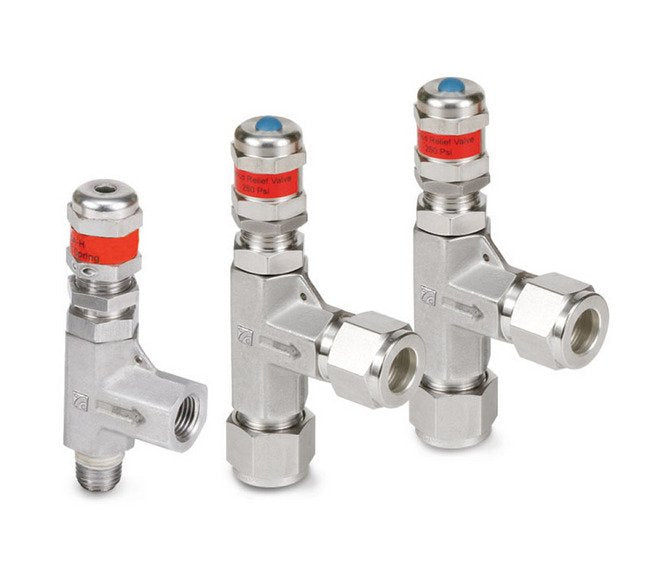

The SUPERLOK® SRVL Series 1/2” Low Pressure Relief Valve offers unparalleled reliability and performance for both consumer and institutional buyers. With a maximum working pressure of 6000 psig | 413 bar and a cracking pressure range of 225~6000 psig | 15.5~414 bar, this valve ensures precise pressure control. Its compact design, external adjustable cracking pressure, and lock wire feature make it versatile and secure. Every valve is tested at the factory, guaranteeing consistent quality. Perfect for applications requiring precise pressure regulation, this valve is a reliable choice for a wide range of industries.

Product Specifications

Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

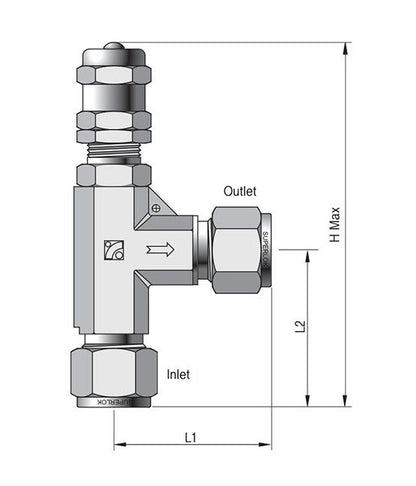

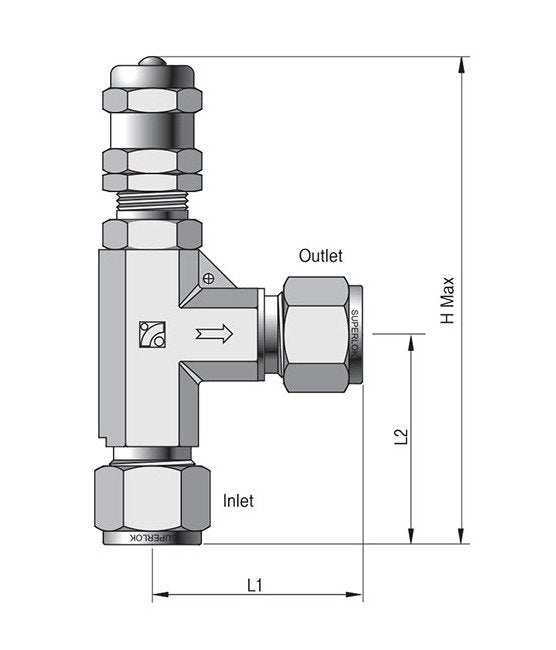

Technical Specs Dimension H
114.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
46.7 mm
Technical Specs Inlet End Connections
1/2 in. SUPERLOK®
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/2 in. SUPERLOK®
Technical Specs Series
SRVH
