The SUPERLOK® SRVL Series 12mm Low Pressure Relief Valve offers precise pressure control with multiple springs for a range of set pressure options. With a maximum working pressure of 6000 psig, adjustable cracking pressure, and compact design, this valve ensures reliable performance in diverse industrial settings. Each valve undergoes rigorous testing to guarantee repeatable pressure settings within ±5%. Ideal for applications requiring dependable pressure relief solutions.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

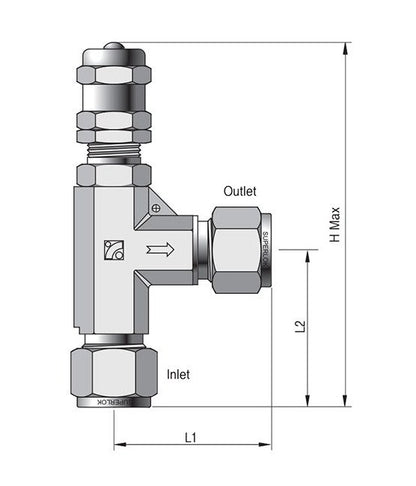

Technical Specs Dimension H
114.0 mm
Technical Specs Dimension L1
46.7 mm
Technical Specs Dimension L2
46.7 mm
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Series
SRVH
