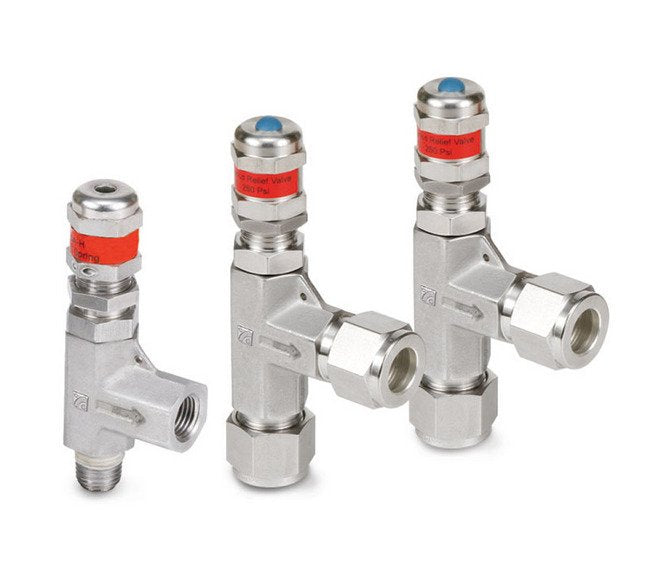

SRVL Series 3/8" Low Pressure Relief Valve
SRVL Series 3/8" Low Pressure Relief Valve
SKU:REL-3f802c
The Superlok® SRVL 3/8" Low Pressure Relief Valve ensures precise pressure control for institutional and government applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SRVL Series 3/8" Low Pressure Relief Valve
$99.99
Quantity: 1
Claim Your Seller Account
SRVL Series 3/8" Low Pressure Relief Valve
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Superlok® SRVL Series 3/8" Low Pressure Relief Valve offers precise pressure control with multiple springs for various pressure ranges. With a maximum working pressure of 6000 psig and adjustable cracking pressure, this valve ensures reliable performance. Its compact design, lock wire feature, and factory-tested quality make it ideal for institutional and government applications where stringent standards must be met.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
225~6000 psig | 15.5~414 bar

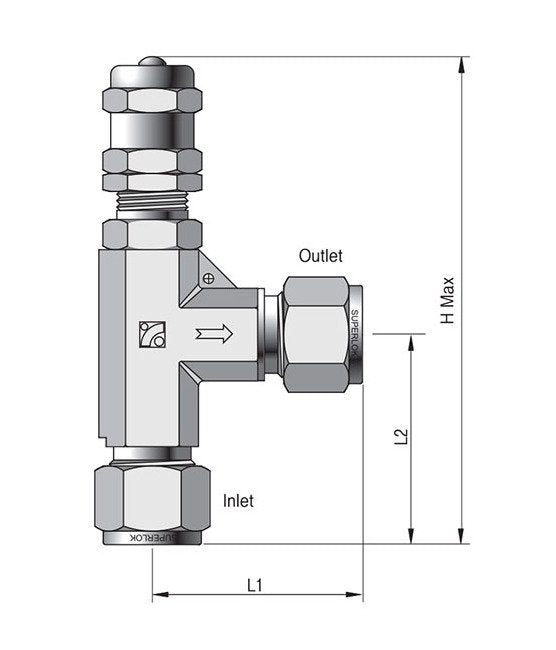

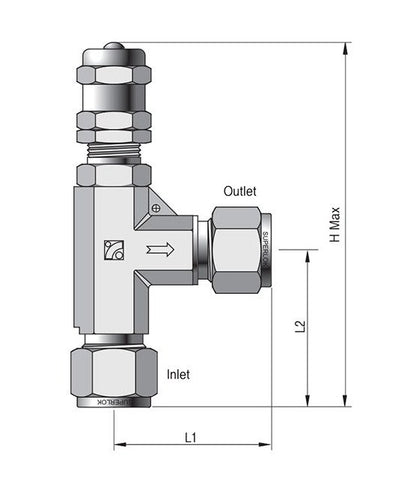

Technical Specs Dimension H
99.5 mm
Technical Specs Dimension L1
34.5 mm
Technical Specs Dimension L2
32.5 mm
Technical Specs Inlet End Connections
3/8 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
6000 psig | 413 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
3/8 in. Female National Pipe Thread (FNPT)
Technical Specs Series
SRVH
