SRVL Series Low Pressure Relief Valve
SRVL Series Low Pressure Relief Valve
SKU:REL-59c784
Compact SUPERLOK® SRVL Series Low Pressure Relief Valve with adjustable cracking pressure, 1/4in MNPT Inlet and 1/4in FNPT Outlet. Factory-tested and repeatable within ±5%.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SRVL Series Low Pressure Relief Valve
$59.99
Quantity: 1
Claim Your Seller Account
SRVL Series Low Pressure Relief Valve
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK® SRVL Series 1/4 Inch Low Pressure Relief Valve features a compact design with adjustable cracking pressure between 10~250 psig. It comes with 1/4 inch Male National Pipe Thread (MNPT) inlet and 1/4 inch Female National Pipe Thread (FNPT) outlet end connections. With a maximum working pressure of 300 psig, this valve ensures precise pressure control. Every valve is factory-tested and repeatable within ±5%, meeting stringent quality standards. The lock wire feature secures pressure settings, making it ideal for various applications. Dimensions provided are for reference, and custom sizes are available upon request.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

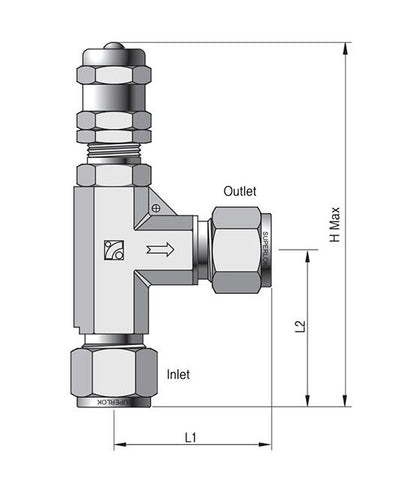

Technical Specs Dimension H
99.5 mm
Technical Specs Dimension L1
30.0 mm
Technical Specs Dimension L2
32.5 mm
Technical Specs Inlet End Connections
1/4 in. Male National Pipe Thread (MNPT)
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. Female National Pipe Thread (FNPT)
Technical Specs Series
SRVL
