SRVL Series Low Pressure Relief Valve with SUPERLOK® Connections
SRVL Series Low Pressure Relief Valve with SUPERLOK® Connections
SKU:REL-15e131
PRECISE PRESSURE CONTROL: SRVL Series 1/4 Inch Low Pressure Relief Valve with adjustable cracking pressure and compact design for reliable performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
SRVL Series Low Pressure Relief Valve with SUPERLOK® Connections
$59.99
Quantity: 1
Claim Your Seller Account
SRVL Series Low Pressure Relief Valve with SUPERLOK® Connections
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK® SRVL Series 1/4 Inch Low Pressure Relief Valve is a reliable solution for maintaining pressure within the range of 10~250 psig. With its adjustable cracking pressure, compact design, and lock wire feature, this valve ensures precise pressure control. Each valve undergoes rigorous testing for performance consistency and reliability. Ideal for applications requiring accurate pressure regulation, this valve offers repeatable set pressure within ±5% at room temperature.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

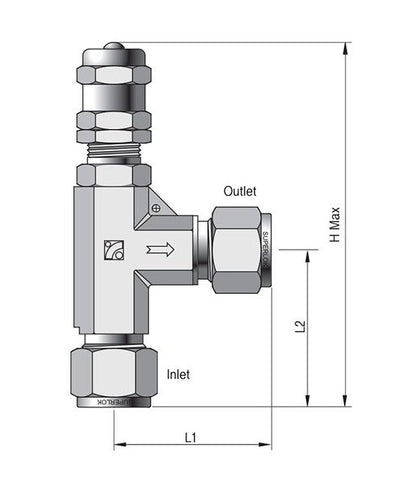

Technical Specs Dimension H
104.6 mm
Technical Specs Dimension L1
38.7 mm
Technical Specs Dimension L2
37.3 mm
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Series
SRVL
