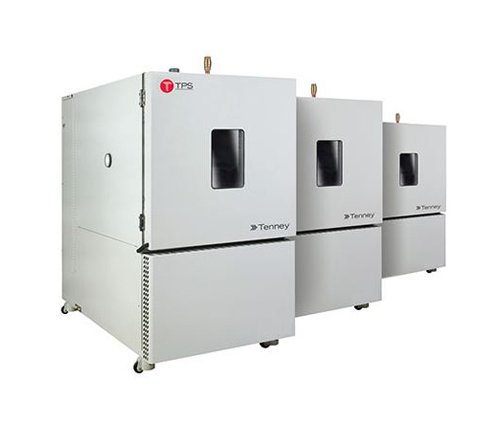

These steady-state test chambers have a large workspace, with standard capacities of 10, 20 and even 30-cubic-feet and can maintain both temperature and humidity conditions for extended periods of time. A highly efficient design with a horizontal airflow system provides maximum uniformity, while air intake and exhaust tubes vent undesirable process moisture and vapors for accurate product testing. A high/low limit alarm will alert users of extreme or inadequate testing conditions, limiting unwanted and inaccurate results.
Product Specifications
Specifications Exterior Depth
64 in
Specifications Exterior Height
77 in
Specifications Exterior Width
45 in
Specifications Features
Meet ICH Q1A Pharmaceutical Standards High/low limit alarms High capacity (10, 20 and 30-cubic-foot workspaces) High performance: -20°C to 200°C Temperature range ±0.3° after stabilization 20% to 95% Relative humidity ±2% for Relative humidity ICH Q1A Stability testing: Long term performance: 25°C/60% RH or 30°C/60% RH Intermediate performance: 30°C/65% RH Accelerated performance: 40°C/75% RH
Specifications Frequency
60 Hz
Specifications Interior Depth
32 in
Specifications Interior Height
36 in
Specifications Interior Width
30 in
Specifications Optional Controller Features
Built-In TCP/IP Networking via Ethernet 10/100 Communication Port | Graphical Displays For Temperature, Humidity And Set Point Values | Remote Access via Smartphone, iPad, etc. | RS485, RS232 And IEE GPIB | Single Set Or Programmed System Modes
Specifications Phase
1
Specifications Relative Humidity Range
20 to 95 %
Specifications Standard Controller Features

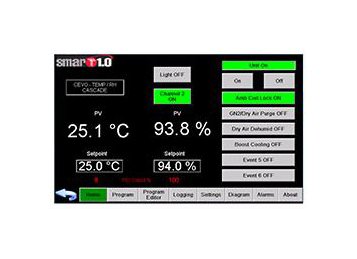

32bit RISC 400 MHz Central Processing Unit | 4GB (SD) Flash Storage - Up To 100 Profiles with 100 Steps Each | FTP Access via Ethernet Connection | High Resolution Graphical Touch Screen | Individual PID Control Loops
Specifications Temperature Range
-20 to 200 ºC
Specifications Voltage
230 V | 240 V
Specifications Weight
1000 lb
