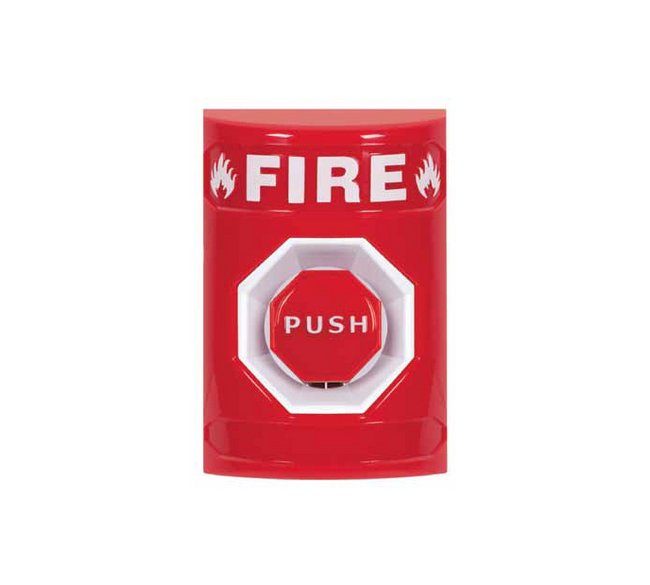

This STI Stopper® Station with a patented design is a highly advanced push button unit that is ADA Compliant and UL Listed to U.S. and Canadian safety standards. Model SS-2002F is designed specifically to complement fire alarm systems of the 21st century. Operation includes Push-to-Activate and Key-to-Reset. The unit incorporates quality features throughout, including raised lettering molded into its polycarbonate housing. If you wish, you can protect your fire Stopper® Station with a tough STI cover to help stop vandalism or accidental damage. The Universal Stopper® cover can be ordered with an optional pre-alarm to help stop malicious activation for inside applications. Outside applications require an STI UL Listed outdoor rated cover to be mounted over the Stopper® Station button to maintain UL Approval.
Product Specifications
Accessories
KIT-H18061 - One Extra Key for SS-2002F ModelKIT-71100A-R - Back Box - Red for SS-2002F (Included)
Approvals And Warranty Testing
It has been tested and approved or listed by:Underwriter Laboratories File No. S2466Canadian Underwriter Laboratories Issue File No. S2466California State Fire Marshal approval 7150-1416:102Americans with Disabilities Act (ADA) Compliant
Approvals And Warranty Warranty
3 y

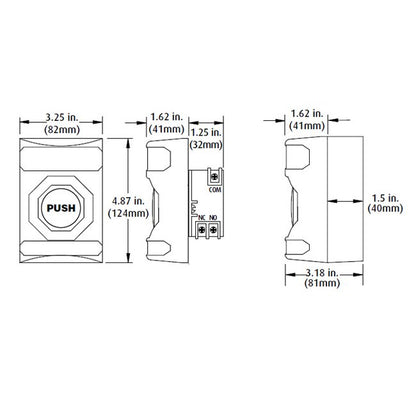

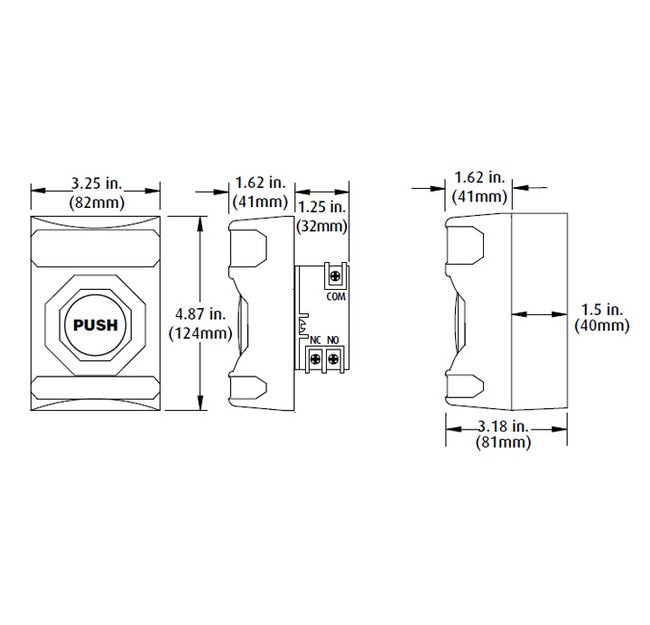

Dimensions Overall Depth
3.18 in | 81 mm
Dimensions Overall Height
4.87 in | 124 mm
Dimensions Overall Width
3.25 in | 82 mm
Key Features Construction
Super tough housing.Stainless steel backplate with ground lug.
Key Features Design
Patented design helps stop accidental activation.Raised letters and symbols molded into housing.
Key Features Electronics
SS-2002F has two Form "C" contacts rated 125/250 V AC, 0 A, 1/2 HP, 30 V DC, 6 A.
Key Features General Information
Push button switches designed specifically to complement fire alarms systems of the 21st century.Simple Push-to-Activate and Key-to-Reset operation.
Key Features Installation
Polycarbonate complies with FDA regulations for food contact applications.When using an STI Stopper® Station outdoors, UL requires unit to be protected with an STI Underwriters Laboratories (UL) Listed outdoor rated cover.
Key Features Options
Add a tough STI cover to protect against vandalism, accidental damage or weather.Cover available for indoor use, with a built-in alarm to help stop malicious activation.
Note
Please note that it is mandated by UL that your STI Stopper® Station be protected with an STI UL Listed outdoor rated cover when used outside.
Specifications Ac Current
10 A
Specifications Ac Voltage
125 V | 250 V
Specifications Direct Current Dc
6 A
Specifications Direct Current Dc Voltage
30 V
Specifications Operating Temperature
-40 to 121 ºC | -40 to 250 ºF
Specifications Power Rating
1/2 hp
Specifications Switch Type
Red Button Push-to-Activate Key-to-Reset
