SS-2042F Stopper® Station Mushroom Pushbutton Switch
SS-2042F Stopper® Station Mushroom Pushbutton Switch
SKU:STI-ed24f2
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SS-2042F Stopper® Station Mushroom Pushbutton Switch
$49.99
Quantity: 1
Claim Your Seller Account
SS-2042F Stopper® Station Mushroom Pushbutton Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

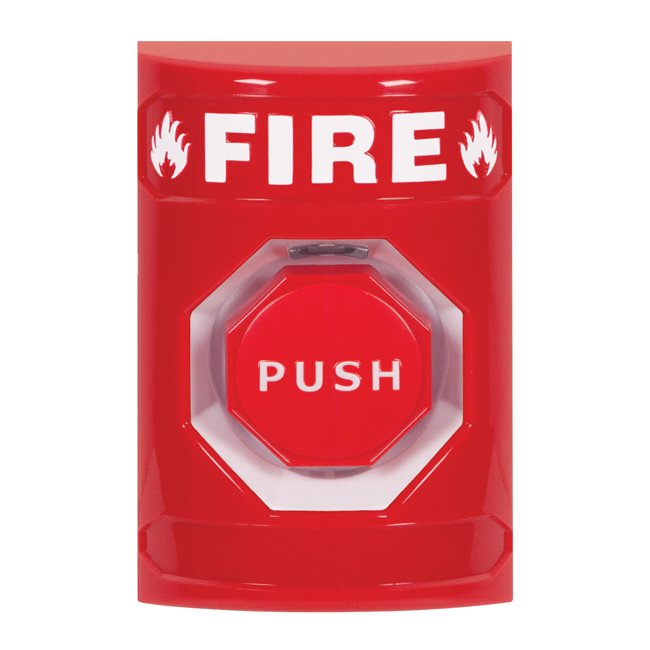

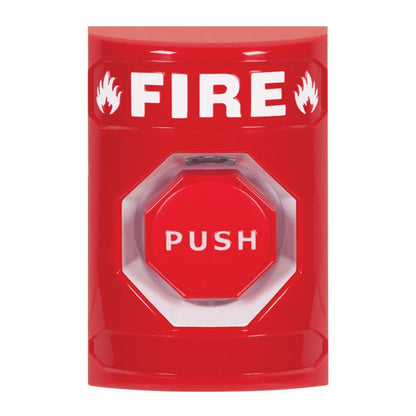

This STI Stopper® Station with a patented design is a highly advanced push button unit that is ADA Compliant and UL Listed to U.S. and Canadian safety standards. If you wish, you can protect your fire Stopper® Station with a tough STI cover to help stop vandalism or accidental damage. The Universal Stopper® cover can be ordered with an optional pre-alarm to help stop malicious activation for inside applications. Outside applications require an STI UL Listed outdoor rated cover to be mounted over the Stopper® Station button to maintain UL Approval.
Product Specifications
Approvals And Warranty Testing
It has been tested and approved or listed by:Underwriter Laboratories File No. S2466Canadian Underwriter Laboratories Issue File No. S2466California State Fire Marshal approval 7150-1416:102Americans with Disabilities Act (ADA) Compliant
Approvals And Warranty Warranty
3 y
Dimensions Overall Depth
3.18 in | 81 mm
Dimensions Overall Height
4.87 in | 124 mm
Dimensions Overall Width
3.25 in | 82 mm
Key Features Construction
Super tough housing.Stainless steel backplate with ground lug.
Key Features Design
Patented design helps stop accidental activation.Raised letters and symbols molded into housing.
Key Features General Information
Push button switches designed specifically to complement fire alarms systems of the 21st century.Simple Push-to-Activate and Key-to-Reset operation.
Key Features Installation
Polycarbonate complies with FDA regulations for food contact applications.When using an STI Stopper® Station outdoors, UL requires unit to be protected with an STI Underwriters Laboratories (UL) Listed outdoor rated cover.
Key Features Options
Add a tough STI cover to protect against vandalism, accidental damage or weather.Cover available for indoor use, with a built-in alarm to help stop malicious activation.
Note
Please note that it is mandated by UL that your STI Stopper® Station be protected with an STI UL Listed outdoor rated cover when used outside.
Specifications Ac Current
10 A
Specifications Ac Voltage
125 V | 250 V
Specifications Direct Current Dc
6 A
Specifications Direct Current Dc Voltage
30 V
Specifications Operating Temperature
-40 to 121 ºC | -40 to 250 ºF
Specifications Power Rating
1/2 hp
Specifications Switch Type
Button and Universal Stopper® Cover with Horn - Flush Mount
