SS Male Stud Coupling with Elastomer Seal Thread BSP Parallel
SS Male Stud Coupling with Elastomer Seal Thread BSP Parallel
SKU:FIT-9c6b68
High-quality SS Male Stud Coupling for industrial applications, light duty, 315 bar pressure, DIN 2353 standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
SS Male Stud Coupling with Elastomer Seal Thread BSP Parallel
$24.99
Quantity: 1
Claim Your Seller Account
SS Male Stud Coupling with Elastomer Seal Thread BSP Parallel
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

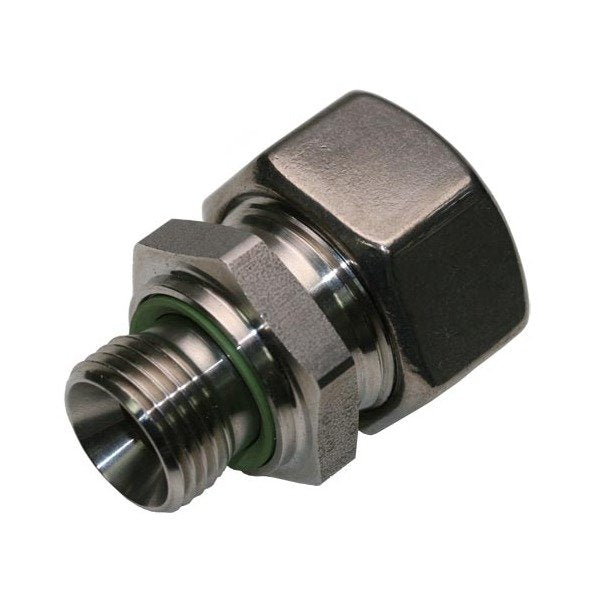

The SS Male Stud Coupling with Elastomer Seal Thread BSP Parallel - Equipped B3 Ring is a light duty fitting designed for industrial applications. Constructed from high-quality stainless steel, it offers reliable performance under high pressure, with a nominal operating pressure of 315 bar. This coupling features a tube diameter of 10.0mm, precise G-thread size of 1/4, and conforms to DIN 2353 standards. Its compact design, measuring L2: 11.0mm, L3: 12.0mm, L4: 26mm, CH1: 19.0mm, CH2: 19.0mm, ensures easy installation and maintenance, making it an ideal choice for various hydraulic systems.
Product Specifications
Specifications Ch1
19.0 mm
Specifications Ch2
19.0 mm
Specifications G Thread Size
1/4
Specifications L2
11.0 mm
Specifications L3
12.0 mm
Specifications L4
26 mm
Specifications Material
Stainless Steel
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Male Stud Coupling with Elastomer Seal Thread BSP Parallel
