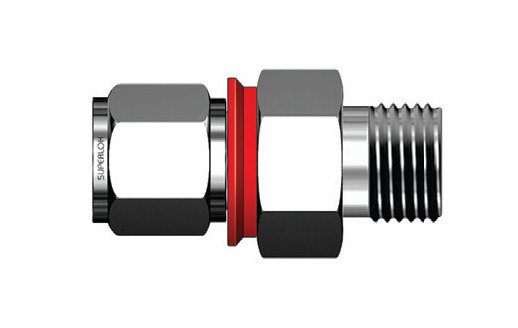

SSMCI 1/4in Tube Male Connector Fitting - Alloy & Stainless Steel

Name: SSMCI 1/4in Tube Male Connector Fitting - Alloy & Stainless Steel
Brand: Superlok-Mako Products LLC
SKU: SSM-e543ec
Price: 29.99 USD
Availability: OutOfStock

SKU:SSM-e543ec

Premium SSMCI 1/4in Tube Male Connector Fitting with patented design for precise compression & enhanced safety.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SSMCI Series Male Connector Fitting is designed to seamlessly connect fractional tubes to SAE/MS straight thread bosses. Made of high-quality materials including Alloy 625, 825, C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, and Stainless Steel, this fitting ensures durability and reliability in diverse applications. Its patented i-Fitting® design features a built-in check ring for precise compression, enhancing safety, productivity, and cost-efficiency. Suitable for valve connections, this fitting meets rigorous industry standards and offers exceptional performance in high pressure and hazardous chemical environments.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

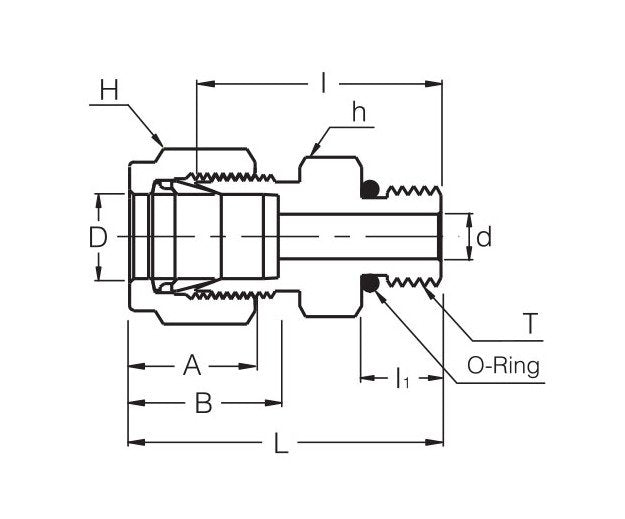

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Male

Technical Specs Dimension A

15.24 mm

Technical Specs Dimension B

17.78 mm

Technical Specs Dimension I

30.22 mm

Technical Specs Dimension I1

11.17 mm

Technical Specs Dimension L

37.59 mm

Technical Specs Material

Technical Specs Minimum Dimension D

4.82 mm

Technical Specs O Ring Uniform Size Number

3-908

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

3/4-16 mm

Technical Specs Tube Outside Diameter D

1/4 in

Technical Specs Width Across Flat H

9/16 in
