SSMCI 6mm Tube to SAE/MS Male Connector Fitting

Name: SSMCI 6mm Tube to SAE/MS Male Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SSM-d684fc
Price: 34.99 USD
Availability: OutOfStock

SKU:SSM-d684fc

Efficiently connect metric tubes to SAE/MS straight thread bosses with the SSMCI 6mm Male Connector Fitting, featuring innovative safety design and industry-leading efficiency.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

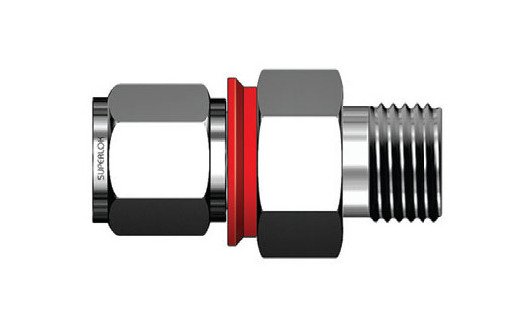

The SSMCI Series 6mm Tube to SAE/MS Male Connector Fitting is designed to seamlessly connect metric tubes to SAE/MS straight thread bosses. Crafted from a variety of high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting features the innovative i-Fitting® components for enhanced safety and efficiency. The built-in check ring acts as a gap gauge, ensuring perfect compression and preventing over- or under-tightening. Ideal for high-pressure and chemical environments, this industry-changing fitting improves productivity, reduces costs, and prioritizes installer safety.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

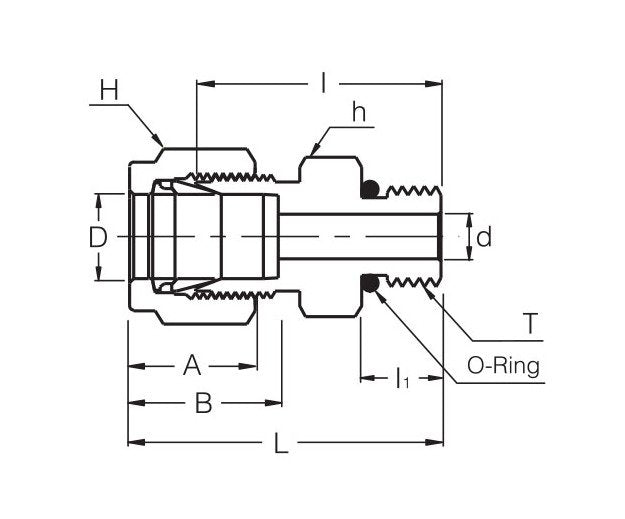

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Male

Technical Specs Dimension A

15.2 mm

Technical Specs Dimension B

17.7 mm

Technical Specs Dimension I

26.7 mm

Technical Specs Dimension I1

9.1 mm

Technical Specs Dimension L

34.0 mm

Technical Specs Material

Technical Specs Minimum Dimension D

4.8 mm

Technical Specs O Ring Uniform Size Number

3-904

Technical Specs Standard Size

6 to 25 mm

Technical Specs Straight Thread T U

7/16-20 mm

Technical Specs Tube Outside Diameter D

6 mm

Technical Specs Width Across Flat H

14.3 mm
