SSMCI Series 1/2-Inch Male Connector Fitting

Name: SSMCI Series 1/2-Inch Male Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SSM-657815
Price: 35.99 USD
Availability: OutOfStock

SKU:SSM-657815

Securely connect fractional tubes with precision using the SSMCI Series Male Connector Fitting. Enhanced safety and productivity for industrial applications.

$35.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

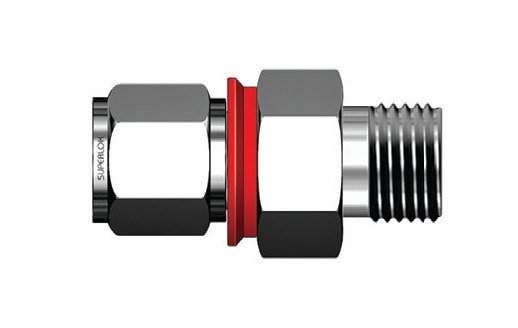

The SSMCI Series 1/2-Inch Male Connector Fitting is designed to seamlessly connect fractional tubes to SAE/MS straight thread boss fittings. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this male connector fitting ensures durability and reliability in various industrial environments. Featuring i-Fitting® components with a patented check ring design, it enhances installer safety, productivity, and cost-efficiency. Ideal for valve connections, this fitting meets stringent quality standards and offers a secure, leak-free connection for optimal performance.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

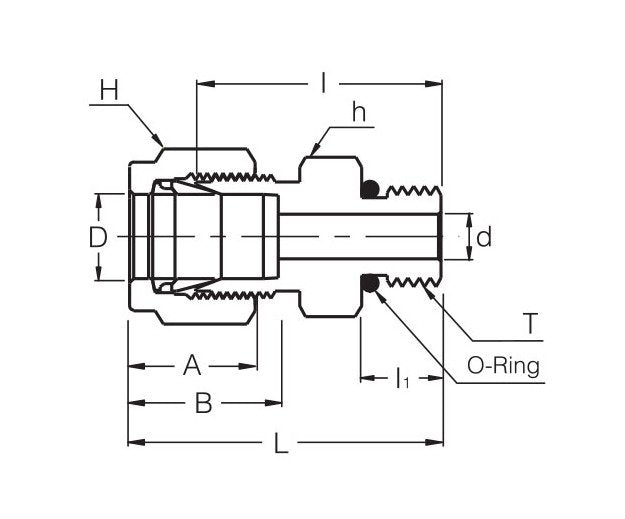

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Male

Technical Specs Dimension A

22.86 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

28.95 mm

Technical Specs Dimension I1

9.90 mm

Technical Specs Dimension L

39.11 mm

Technical Specs Material

Technical Specs Minimum Dimension D

7.11 mm

Technical Specs O Ring Uniform Size Number

3-906

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

9/16-18 mm

Technical Specs Tube Outside Diameter D

1/2 in

Technical Specs Width Across Flat H

7/8 in
