SSMCI Series 1/4 Male Connector Fitting
SSMCI Series 1/4 Male Connector Fitting
SKU:SSM-5d0a95
High-quality SSMCI Series 1/4 Male Connector Fitting for secure fractional tube connections on straight thread bosses.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SSMCI Series 1/4 Male Connector Fitting
$29.99
Quantity: 1
Claim Your Seller Account
SSMCI Series 1/4 Male Connector Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

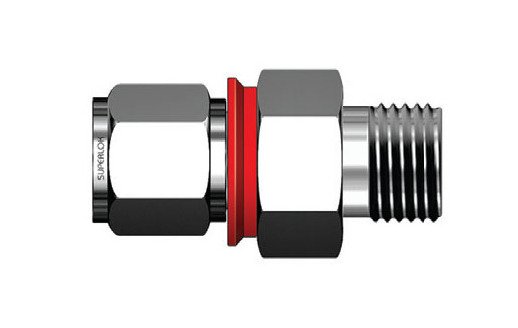

The SSMCI Series 1/4 Male Connector Fitting is designed to connect fractional tubes securely to SAE/MS straight thread bosses. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability. Its patented i-Fitting® design features a check ring for precise compression, enhancing safety and productivity in high-pressure environments. With dimensions meeting industry standards, this male connector fitting is ideal for valve connections in various applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

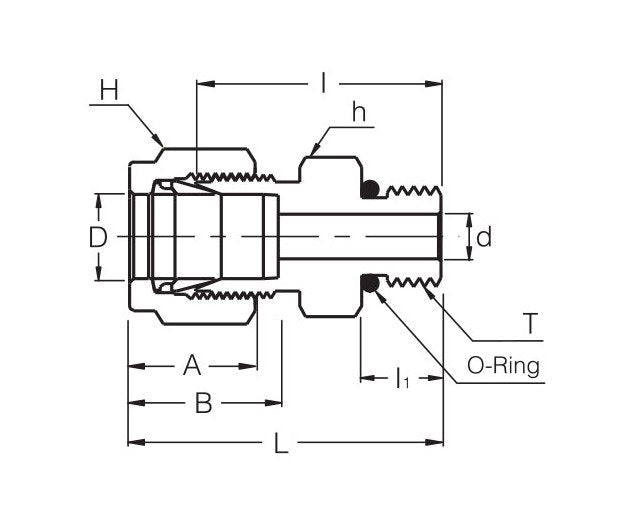

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
26.67 mm
Technical Specs Dimension I1
9.14 mm
Technical Specs Dimension L
34.03 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs O Ring Uniform Size Number
3-904
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Straight Thread T U
7/16-20 mm
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
