SSMCI Series 1" Tube Male Connector Fitting

Name: SSMCI Series 1" Tube Male Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SSM-39e536
Price: 49.99 USD
Availability: OutOfStock

SKU:SSM-39e536

Enhance connections with the SSMCI Series 1" Tube Male Connector Fitting featuring innovative i-Fitting® components for reliable, leak-free performance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

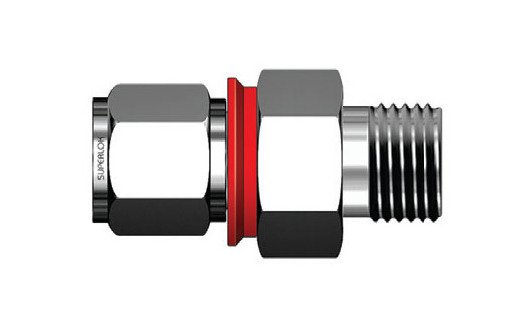

The SSMCI Series 1" Tube Male Connector Fitting is designed to seamlessly connect fractional tubes to SAE/MS Straight Thread Boss, ensuring reliable and leak-free connections. Crafted from high-quality materials such as Alloy 625, Alloy 825, and Stainless Steel, this male connector fitting delivers exceptional durability and corrosion resistance. Its innovative i-Fitting® components, including a built-in gap gauge for perfect compression, enhance safety, increase productivity, and reduce costs in high-pressure environments. Ideal for valve connections, this product offers industry-changing performance backed by patented design by BMT.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

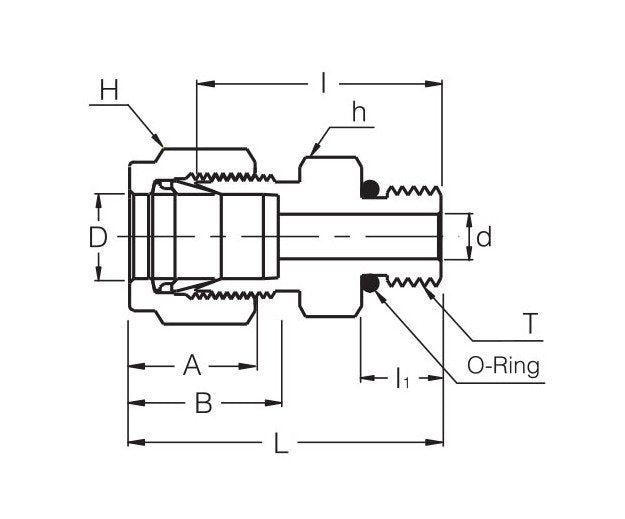

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Male

Technical Specs Dimension A

31.24 mm

Technical Specs Dimension B

26.41 mm

Technical Specs Dimension I

41.14 mm

Technical Specs Dimension I1

14.98 mm

Technical Specs Dimension L

53.34 mm

Technical Specs Material

Technical Specs Minimum Dimension D

16.76 mm

Technical Specs O Ring Uniform Size Number

3-912

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

1-1/16-12 mm

Technical Specs Tube Outside Diameter D

1 in

Technical Specs Width Across Flat H

1-1/2 in
