SSMCI Series 12mm Male Connector Fitting
SSMCI Series 12mm Male Connector Fitting
SKU:SSM-fe4e99
High-performance 12mm Male Connector Fitting for Metric Tubes, featuring patented i-Fitting® design for optimal compression and enhanced safety in various environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SSMCI Series 12mm Male Connector Fitting
$34.99
Quantity: 1
Claim Your Seller Account
SSMCI Series 12mm Male Connector Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

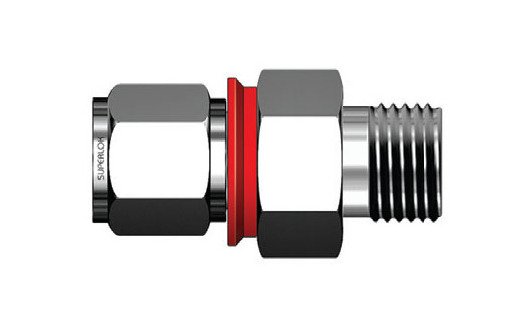

The SSMCI Series 12mm Male Connector Fitting is designed to securely connect Metric Tubes to SAE/MS Straight Thread Boss. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting boasts a patented i-Fitting® design that ensures perfect compression, enhancing safety in high-pressure and chemical environments. With a built-in gap gauge and components like body, ferrule, nut, and check ring, this fitting improves installation efficiency, reduces costs, and is adaptable to valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

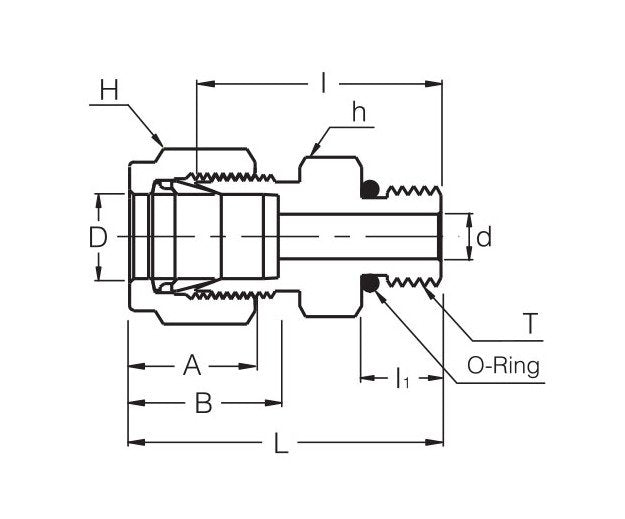

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
29.0 mm
Technical Specs Dimension I1
9.90 mm
Technical Specs Dimension L
39.1 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.1 mm
Technical Specs O Ring Uniform Size Number
3-906
Technical Specs Standard Size
6 to 25 mm
Technical Specs Straight Thread T U
9/16-18 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22.2 mm
